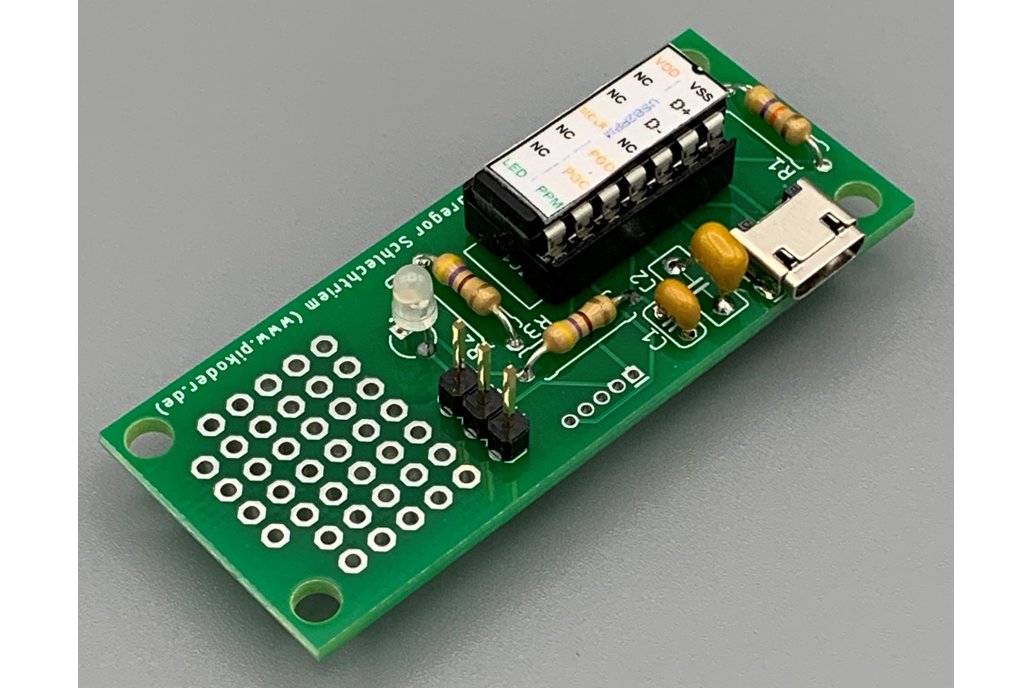

Engineering board for the USB2PPM - The pcb also provides for simplified integration into your system with a small prototype area.Designed by www.pikoder.com in Germany
The USB2PPM controller provides the bases for a PC- or Smart device- (Phone or tablet) based PPM encoding for RC, robots, and drones. This allows you to control your R/C vehicle or robot by a joystic…Read More…
The USB2PPM controller provides the bases for a PC- or Smart device- (Phone or tablet) based PPM encoding for RC, robots, and drones. This allows you to control your R/C vehicle or robot by a joystick, wheel, keyboard or mouse. The design based on the PIC16F1455 allows for a single chip solution. The PiKoder Control Center PCC with its grafical and intuitive user interface allows you to simply test and customize your PiKoder.
After powering up USB2PPM will continuously output neutral PPM16 pulse frames (8 channels with 1.5ms pulses each, 20ms total frame length). Power would be provided through the USB port.
If you wanted to use a Joystick then either a PC or an Android device would be deployed as a gateway. When using an Android device you would instal the Joystick2PPM app which is offered free of charge in the Google Play Store. Additionally you would need an USB hub(see photo with setup for more details).
To control your model with a joystick form your PC you would use the Flytron Joystick Interface software "Compufly" for standard applications. The user interface is similar to the Android app. For more complex application needing a higher level of customization you might want to consider the open source Java program Joystick2PPM.
The kit contains all parts required such as pcb, assembly manual and controller programmed with the latest firmware - please note that this kit contains one SMD component (USB connector).
