MICRO AR VR DISPLAY 0.83 INCH 2560*1440 HIGH RESOLUTION 1800NITS HIGH BRIGHTNESS MIPI FOR miniature projectors Overview of 0.83" micro oled display 2560*1440 The Micor OLED Display is a 0.83 inch dia…
Read More…MICRO AR VR DISPLAY 0.83 INCH 2560*1440 HIGH RESOLUTION 1800NITS HIGH BRIGHTNESS MIPI FOR miniature projectors
Overview of 0.83" micro oled display 2560*1440

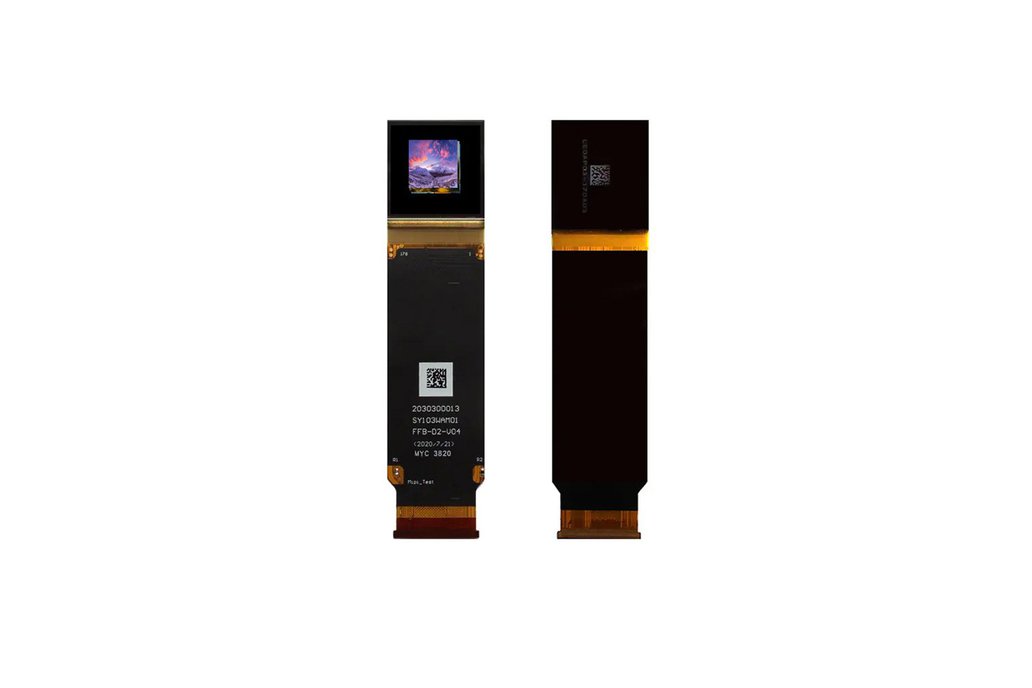

The Micor OLED Display is a 0.83 inch diagonal Si-OLED display screen product, it self emiting. this microdisplay supports display 2560(RGB)×1440 (Quad-HD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB π type, it's pixel density is 3527 PPI. As for mechanical detail, it features active area of 18.432(W)×10.368(H) mm, outline size of 21.09(W)×22.77(H)×1.58(D) mm. SY083WAM01 can provides 1800 cd/m² display brightness 500000:1 transimissive contrast ratio, best view direction on Symmetry , and response time of 1 (Max.)(G to G) ms.
0.83 inch Si-OLED micro display Parameter
Application:AR VR devices, EVF, Night vision, sight...
0.83" 2560*1440 Micro display Screen Features

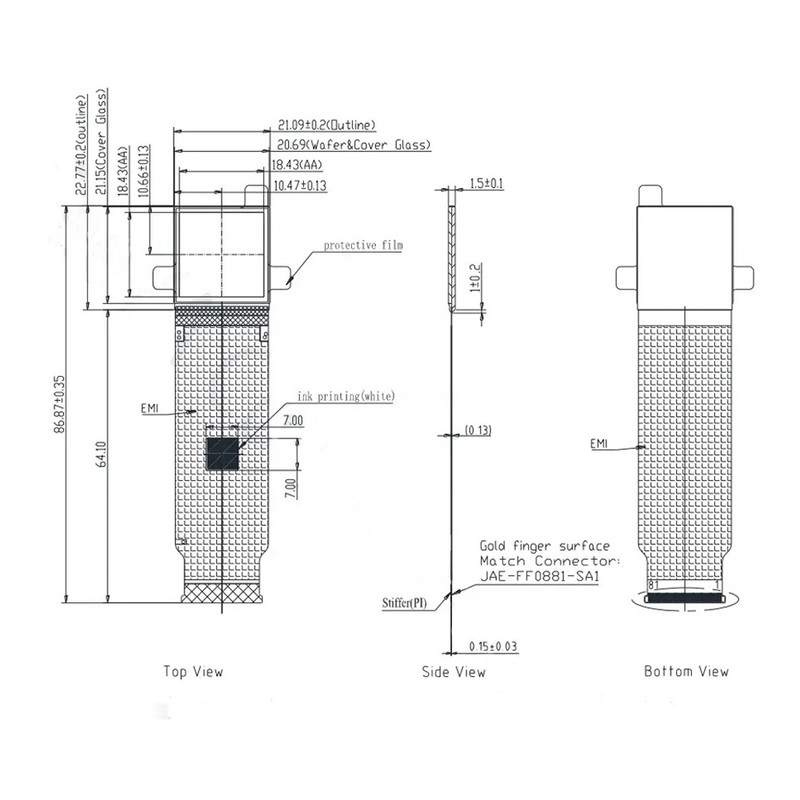

Mechanical Drawing of 0.83 inch micro oled display 2560*1440
Mechanical Drawing of HDMI Controller Board:

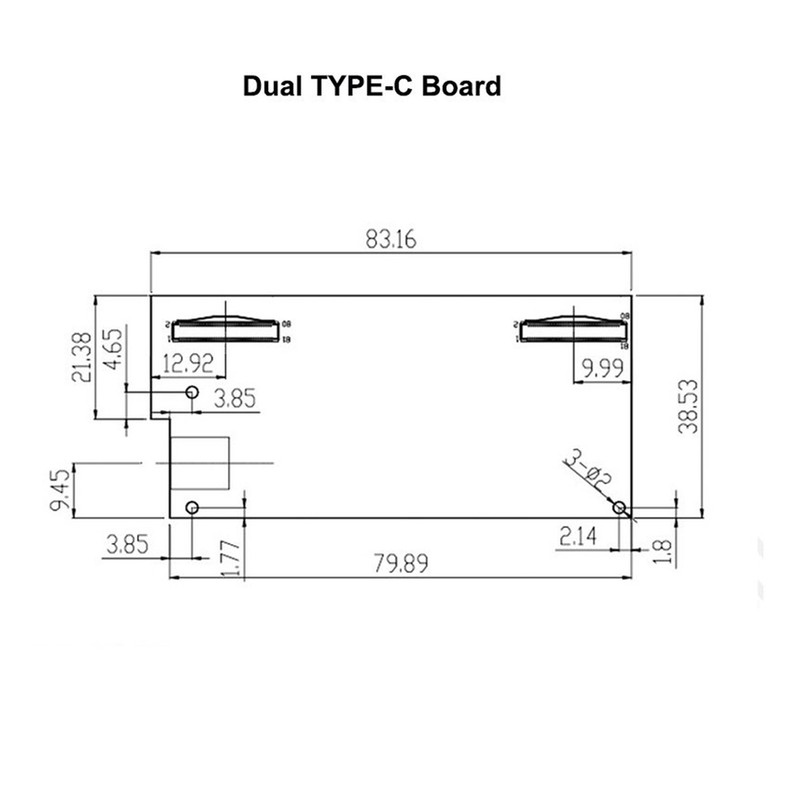

Mechanical Drawing of Binocular TYPE-C Controller Board
0.83" 2560*1440 Micro display Screen Applications:
