MICRO AR DISPLAY 0.57 INCH 1600(RGB)×1200 HIGH RESOLUTION 1800NITS HIGH BRIGHTNESS seeya OLED MICRODISPLAY MIPI for ar glasses vr headset
Designed by Display Components in Hong Kong
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
Micro oled screen 0.57 inch 1600(RGB)×1200 (UXGA) 1800cd/m2 micro display MIPI for Head-mounted Displays (HMD),viewfinder,Head-Mounted Displays (HMD) summary of 0.57" micro oled screen 1600x1200： The…
Read More…micro oled screen 0.57 inch 1600(RGB)×1200 (UXGA) 1800cd/m2 micro display MIPI for Head-mounted Displays (HMD),viewfinder,Head-Mounted Displays (HMD)
summary of 0.57" micro oled screen 1600x1200：

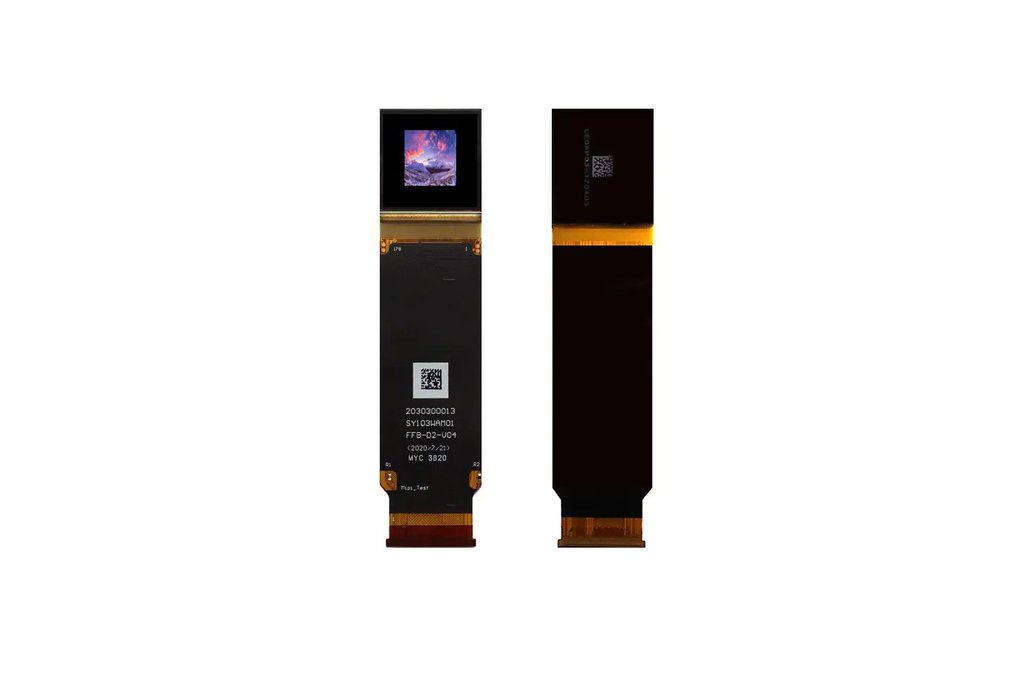

The micro display is a 0.57 inch diagonal Si-OLED display screen product from SeeYA, it self emiting, without touch screen. this microoled display supports display 1600(RGB)×1200 (UXGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 3527 PPI. As for mechanical detail, it features active area of 11.52(W)×8.64(H) mm, outline size of 21.087(W)×22.765(H) mm. the micro oled display can provides 1800 cd/m² display brightness 50000:1 transimissive contrast ratio ., also applicable for the medical and military industry such as Head-mounted Displays (HMD),viewfinder,Head-Mounted Displays (HMD) etc.
0.57 inch Si-OLED micro display
Application:AR VR devices, EVF, Night vision, sight...
0.57" 1600x1200 Micro display Screen Features

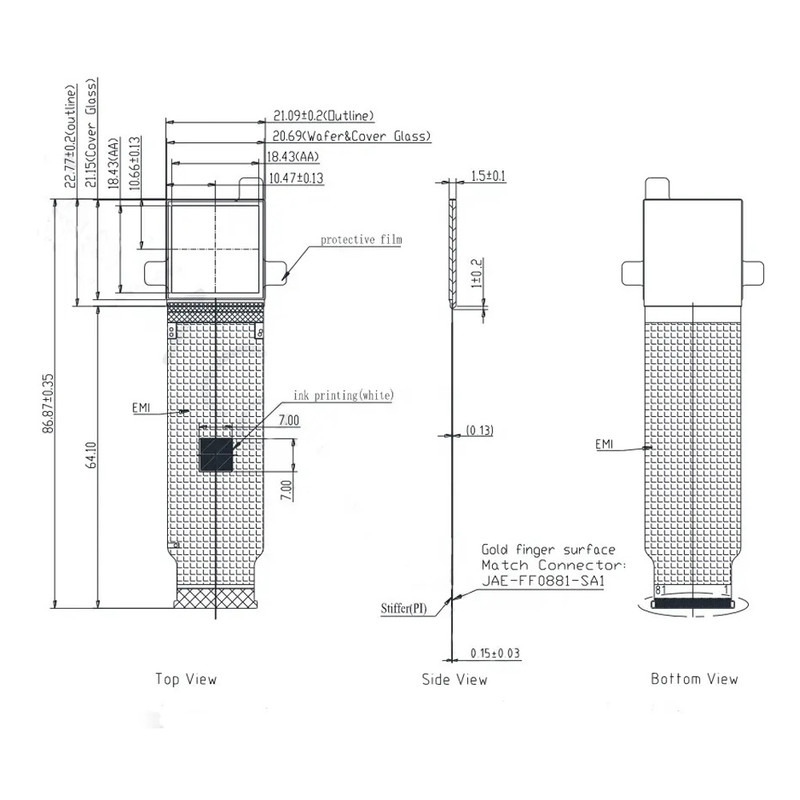

Mechanical Drawing
Mechanical Drawing of HDMI Controller Board:
Mechanical Drawing for Binocular TYPE-C Controller Board:
0.57" 2560*2560 Micro display Screen Applications:
