Retro-style trainer board KIT to assemble running on a Motorola MC14500 1-bit ICU (Industrial Control Unit)

Designed by Nicola Cimmino in Poland

PLC14500-Nano 1-bit Single Board Computer KIT 1

PLC14500-Nano 1-bit Single Board Computer KIT 2

PLC14500-Nano 1-bit Single Board Computer KIT 3

PLC14500-Nano 1-bit Single Board Computer KIT 4


$49.00

Out of Stock

Sold out since Mar 25, 2023

Retro-style trainer board KIT to assemble running on a Motorola MC14500 1-bit ICU (Industrial Control Unit)

Another batch gone! I'm waiting for components, new ones estimated to be be on sale by 15th April 23. If you miss this batch please re-register in the waitlist, I have more being delivered to me but …

Another batch gone! I'm waiting for components, new ones estimated to be be on sale by 15th April 23.

If you miss this batch please re-register in the waitlist, I have more being delivered to me but there have been delays.

NOTE: This is a kit to assemble. You will need a solder iron, tin and possibly a multimeter.

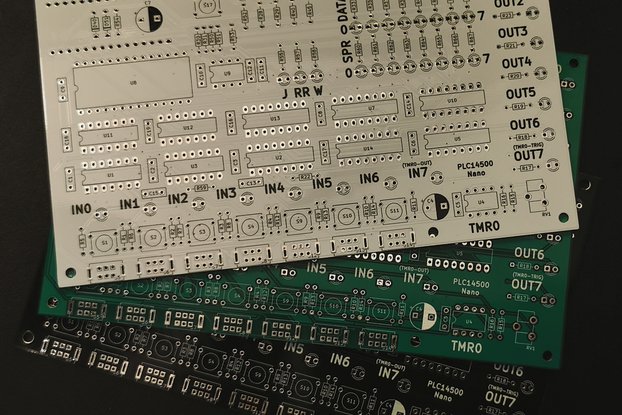

The PLC14500 Nano is a retro-style trainer board intended for the user to familiarize with the Motorola MC14500 1-bit ICU (Industrial Control Unit), PLCs and Ladder Logic. The board has abundant LEDs that show the status of the system buses and registers. This, combined with the possibility to run the software step by step, gives the user a great deal of insight into how their programs are executing. The slow clock mode makes instead for a mesmerizing light show that won't fail to impress when the board is parked on a desk, waiting for the next coding adventure.

Main features:

256 Bytes of program RAM (can be replaced with an EEPROM)
7 Inputs each with toggle and momentary switch capability
7 Outputs (LEDs)
1 Timer mapped to the I/O bus (0.5 to 11s, adjustable via a trimmer)
7 bits scratchpad RAM
3 clock modes (fast, slow, manual step)

True to its retro style PLC14500 Nano sports exclusively through-hole components and chips in DIP packages. You might notice an intruder in the Bill of Materials, an Arduino Nano! It's there purely to act as a bootloader, with a convenient USB interface that surely is easy to connect to modern PCs. However, to not spoil the illusion, the Arduino is mounted on the bottom side of the PCB, so it won't be visible when using the board.

The full kit includes the PCB along with all needed components. If you you have the components and prefer to order the PCB only, see my other listing for the bare PCB:

https://www.tindie.com/products/29575/

You also get a toolchain for Windows to assemble programs and upload them to the board over USB, both as a ready to run app (https://github.com/nicolacimmino/PLC-14500/releases) and the full source code.

What is included

PLC14500 PCB
All components, including the Arduino pre-programmed with the PLC14500 bootloader
Printed assembly instructions
Printed full page assembly layout
Printed BOM
