The DC Power Monitor Extension board allows user to evaluate the DPWR Module. It maps out the serial interface and measurement channels to wire connectors. It connects the module to the PC Application software via USB.

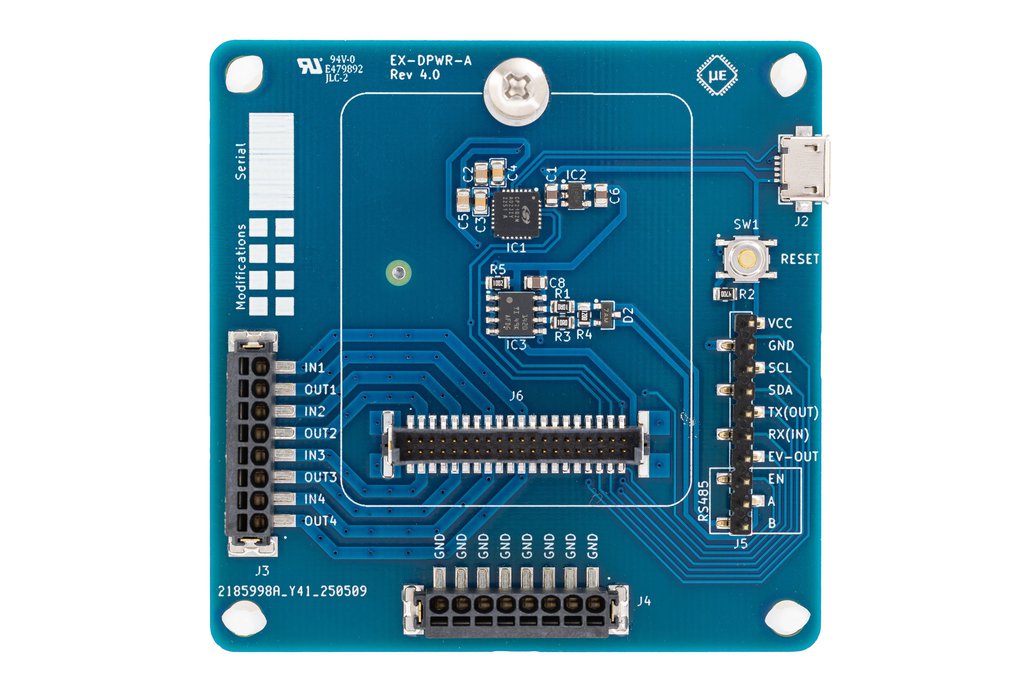

This is an extension board that allows you to evaluate the DC Power Monitoring Module fully. It features USB to UART bridge to connect the Module to the PC Application. It also maps out the serial interface pins for I2C, UART and RS485 extension. Measurement channels can be connected directly by wires through the channel connector. A common ground rail connector is provided to connect all power supplies to the same reference GND. The extension board forms a design reference for Users to mount the Module directly to their own PCBs.

Features:

• USB Interface with Power
• Digital pins header
• I2C Interface
• UART Modbus
• RS485 control
• Wired Channels
• Reset Button
• Module Connector
• Standoff with Mounting screw
