Raspberry Pi3 project enclosure

Name: Raspberry Pi3 project enclosure
SKU: 15482
Price: 10.95 USD
Availability: InStock

A project enclosure for the Raspberry Pi3, with an open interior for Hats etc.

Designed by Marty Rice in United States of America








Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

A project enclosure for the Raspberry Pi3, with an open interior for Hats etc.

What is it? This is an enclosure I designed specifically for the Raspberry Pi 3. It is laser-cut from cast acrylic and comes in a variety of colors. The design utilizes aluminum standoffs to suppor…

What is it?

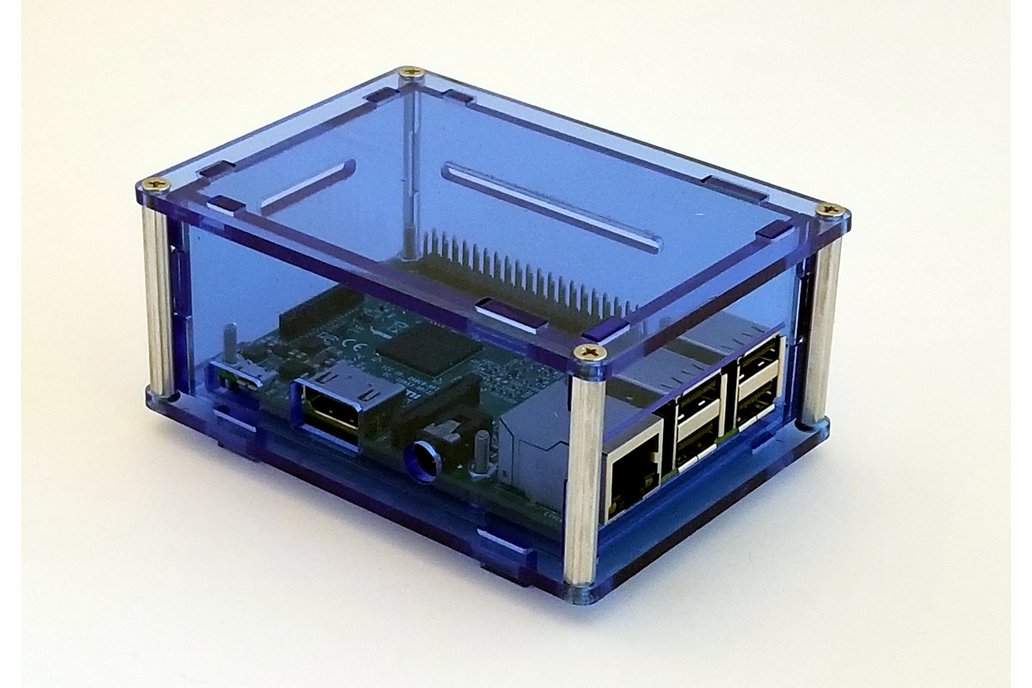

This is an enclosure I designed specifically for the Raspberry Pi 3. It is laser-cut from cast acrylic and comes in a variety of colors. The design utilizes aluminum standoffs to support the enclosure, and unlike my original Pi3 enclosure, this version moves the standoffs to the outside so that there is no interference inside the enclosure for project where you want to connect a Hat or other daughterboard to the top of the Raspberry Pi. The standoffs are 1 1/2" tall, so there is about 33mm of interior height above the Pi. The sides have cutouts for access to all front/side and MicroSD card ports.

Some other details of this design: The left and right side panels extend through the bottom plate to create feet (approx 3mm long) to support the enclosure so that it does not get scuffed up, and the holes for all the screws have been countersunk so that they are flush with the surface, creating a nice finished look.

The kit includes all hardware to assemble, including stainless-steel finish screws and aluminum standoffs.

Note: Raspberry Pi shown is not included!
