Digilent Analog Discovery Oscilloscope, 2nd version - Used
Sold By MMehta
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
For sale here is a used Digilent Analog Discovery Oscilloscope, second version, in working condition. Apart from being a 100MS/s USB Oscilloscope, it has many other functions - Logic Analyzer, Data L…
Read More…For sale here is a used Digilent Analog Discovery Oscilloscope, second version, in working condition.
Apart from being a 100MS/s USB Oscilloscope, it has many other functions - Logic Analyzer, Data Logger, Network Analyzer, Impedance Analyzer, and more. Please see the product website at the following link for more information - https://digilent.com/reference/test-and-measurement/analog-discovery-2/start .

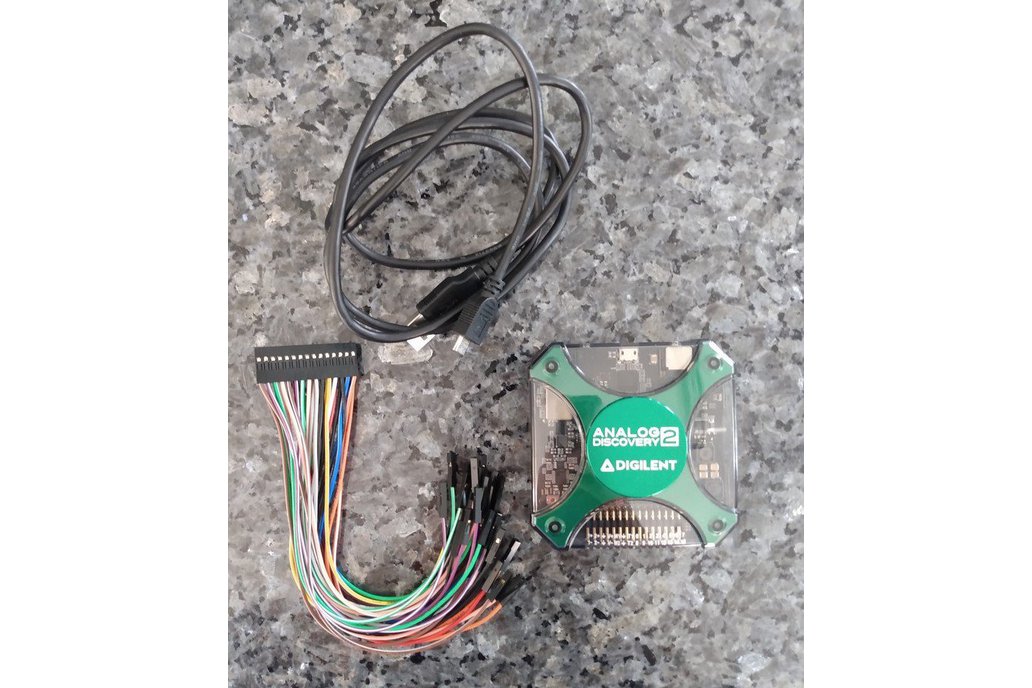

Inside the box:
On the upper surface of the plastic box, on the top right, the characters B-19 were written using a marker. They were removed but, have left a mark on the plastic. This mark is very light and can be seen at an angle. This is shown in the last picture.
For upto about 4-5MHz the included 'wire probes' may be sufficient. For better signal integrity, you may use a BNC adapter to connect BNC probes. You may buy a BNC adapter like the one at https://digilent.com/shop/bnc-adapter-for-analog-discovery/ . You can also make one yourself and here are two websites for ideas - https://www.eevblog.com/forum/testgear/juntek-dpa-2698-10mhz-signal-amplifier-digilent-analog-discovery/msg3067172/ and https://atadiat.com/en/the-multi-function-instrument-analog-discovery-2-review/
The pictures in the gallery are those of the item you will receive. I have also uploaded a picture of, 1.) the AD's signal generator giving out 5MHz, 2.) it's oscilloscope displaying that.
I have two more of these - all are used and in good condition. If you need more than one then, please email me.
Mailing will be done only to US, Swedish, Singapore, United Arab Emirates and Australian addresses only. Shipping for a US address is free for USPS 'Ground Advantage' service and $8.35 extra for USPS Priority Mail. For SWE, SGP, UAE and AUS, US$13 extra will be charged.
Thank you.
