Now my HUB cape for PocketBeagle gets tiny OLED displayDesigned by microwavemont, Ships from Japan
What is it? Extension board (Cape) for PocketBeagle board with tiny OLED display (SSD1306, 64x32 pixels) and 2/4 port USB hub Why did you make it? Sometimes we need some data display for standalone...Read More…

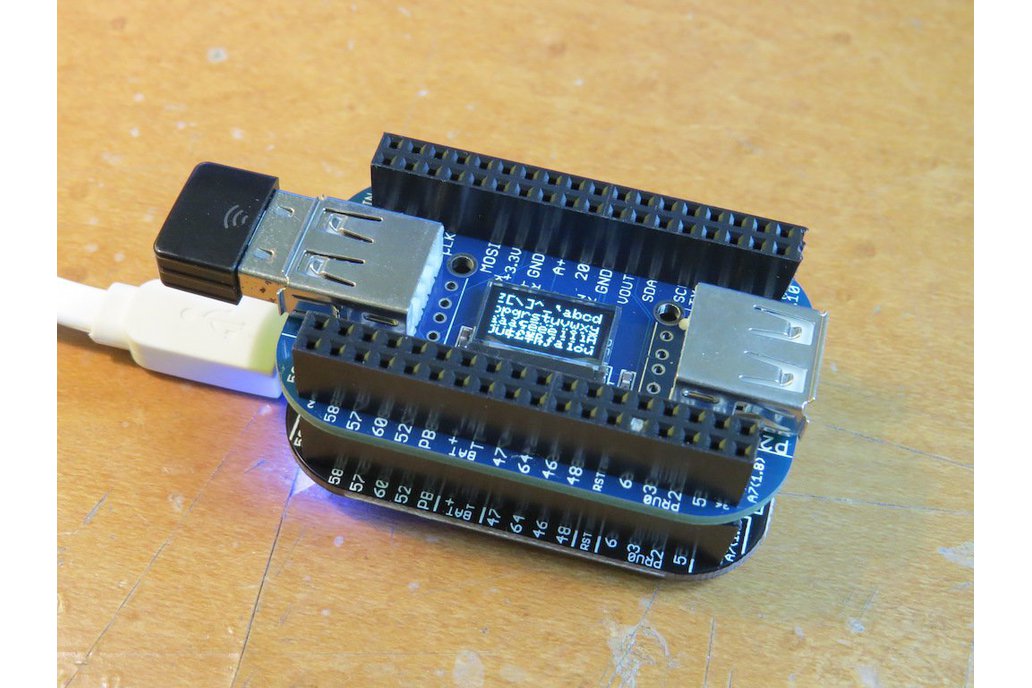

Extension board (Cape) for PocketBeagle board with tiny OLED display (SSD1306, 64x32 pixels) and 2/4 port USB hub
Sometimes we need some data display for standalone operation of a board. At this moment, no commercial products realize OLED display and USB hub Cape for PocketBeagle board. USB ports are quite useful for WiFi, sound, even more (Will you try Intel Movidius?)
This board can enhance the capability of PocketBeagle by USB extension and OLED display
OLED display is commercial standard, SSD1306. Sample program is uploaded to github.
SSD1306 OLED is connected to I2C-1 bus of PocketBeagle
USB 2-port or 4-port are selectable on ordering at the same price.
2-port model is smarter, the 4-port model is a thick one. Please see the images and select one of them.
If OLED is not needed to your application, this one will be better choice for you..
