DAC embedded Nutube headphone amplifier with USB bus-power operation!Designed by microwavemont, Ships from Japan
Attached parts layout card missing value of R3. It is 33k Ohms!! (R7 is 75 Ohm) Please don't forget to put it after soldering. (otherwise it will work as a single channel..) What is it? USB-DAC emb...Read More…
Attached parts layout card missing value of R3. It is 33k Ohms!! (R7 is 75 Ohm) Please don't forget to put it after soldering. (otherwise it will work as a single channel..)

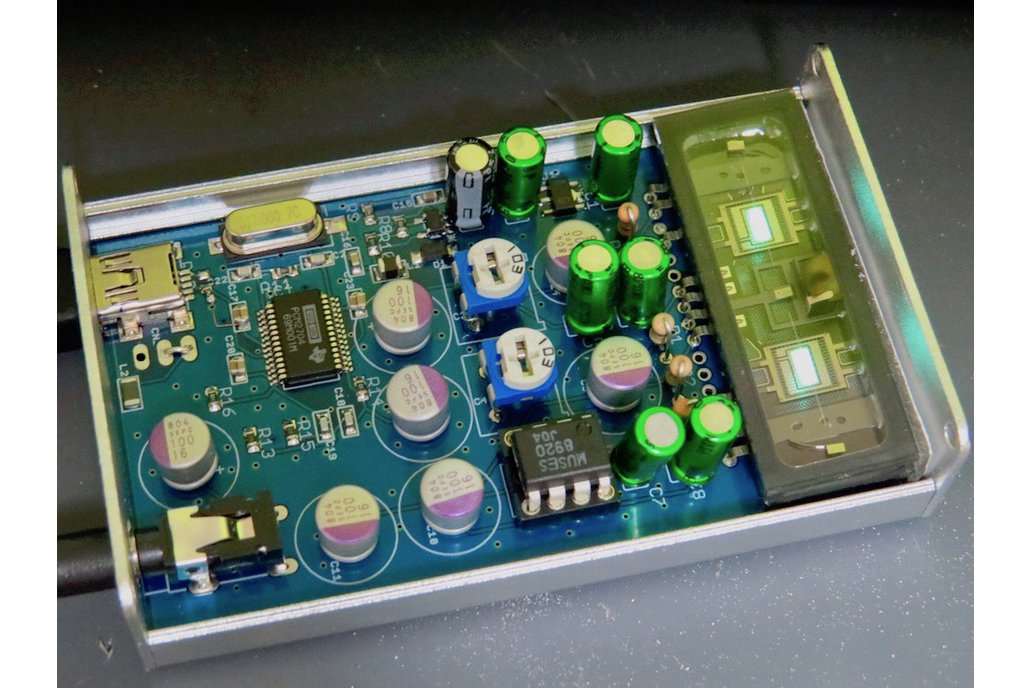

USB-DAC embedded Nutube headphone amplifier kit with USB bus-power operation.
I've enjoyed Nutube headphone amplifier, but the music source of headphone amplifiers is mostly USB output, for example Mac, PC, iPhone, iPad or smartphone. Even Raspberry Pi and NanoPi, Pocketbeagle has a USB-host function and they are capable of audio output through USB. If my Nutube headphone amplifier has USB input, it should be more useful and easy for enjoying "vacuum tube sound". The one thing we should care about is power supply, but this amplifier has built-in voltage booster and full USB bus power! (no more need of extra power supply).
USB-DAC (Ti PCM2704, 16bit, 48kHz) is embedded.
Embedded voltage booster enables full USB bus power operation.
Voltage booster operation frequency is 1.5MHz and no fear of audio interference.
Very small size!
Metal enclosure is included.
SMD parts are pre-soldered and USB-DAC function is fully examined before shipping.
Mellow vacuum tube sound with handy USB bus power!
