Introducing LogicBoard 2, the improved second generation of the popular LogicBoard designed to make learning logic gates easier, clearer, and more durable than ever. Whether you're an electronics student, an educator, or a hobbyist, LogicBoard 2 offers the perfect hands-on platform to explore logic gates in a practical and intuitive way.

Logic gates are the fundamental building blocks of computers and the core logic behind all programming languages. Understanding them is essential for building a solid foundation in programming, microcontrollers (Arduino, MicroPython), and digital circuit design. LogicBoard 2 helps you experiment with gate combinations and build more complex logic structures—an essential first step for anyone learning electronics or coding.

Features

• 2× AND, 2× NAND, 2× OR, 2× NOR, 2× XOR, 4× NOT gates
• Each gate includes 2 male-header inputs and 1 male-header output, designed for long-term durability.
• Users can replace only worn jumper cables—not the board—ensuring years of reliable use.
• 3 switchable inputs (0/1) + fixed 0 and 1 headers.
• 3 output LEDs for instantly visualizing results.
• Compatible barrel jack power input (same connector as Arduino Uno).
• Wide input voltage range (4–14V) – compatible with common adapters and battery packs.
• Reverse-polarity protection using a Dual-Schottky diode on the power jack.
• Includes built-in short-circuit protection, reverse-polarity protection, and pull-down resistors for safer learning.
• White PCB for clearer educational visuals – every logic gate is neatly framed with its name printed on the corner.

What’s New in LogicBoard 2?

• Smaller, cleaner, more refined layout – redesigned for improved usability and easier learning.
• Gate inputs now include pull-down resistors – every input defaults to a stable 0, making behavior predictable and easier to understand.
• Stronger input/output protection – input switches and the fixed “1” line now include short-circuit protection, making the board nearly impossible to damage.
• Two additional NOT gates – rarely used XNOR gate was replaced with 2× NOT gates for more flexibility in experimenting.
• Rubber feet on the bottom – prevents scratching desks and protects solder joints.

Perfect for Learning, Teaching, and Experimentation

LogicBoard 2 is ideal for:

• Students learning logic gates for the first time
• Educators and classroom demonstrations
• Arduino and microcontroller beginners
• Hobbyists creating modular logic circuits
• Makers building larger structures like full adders by combining multiple boards

Explore Logic Gates the Right Way

LogicBoard 2 comes fully assembled and ready to use. Simply power it with any 4–14V adapter or battery pack, connect your jumper wires, and start experimenting with real logic gates—no breadboard required.

Build, test, learn, and truly see how digital electronics work.

Thanks to its very low power consumption, LogicBoard 2 can run for long periods on batteries—perfect for workshops or classroom environments. Rechargeable batteries are recommended for long-term use.

Get your LogicBoard 2 today and start exploring the world of logic gates hands-on, safe, and smarter than ever!

Package Contents:

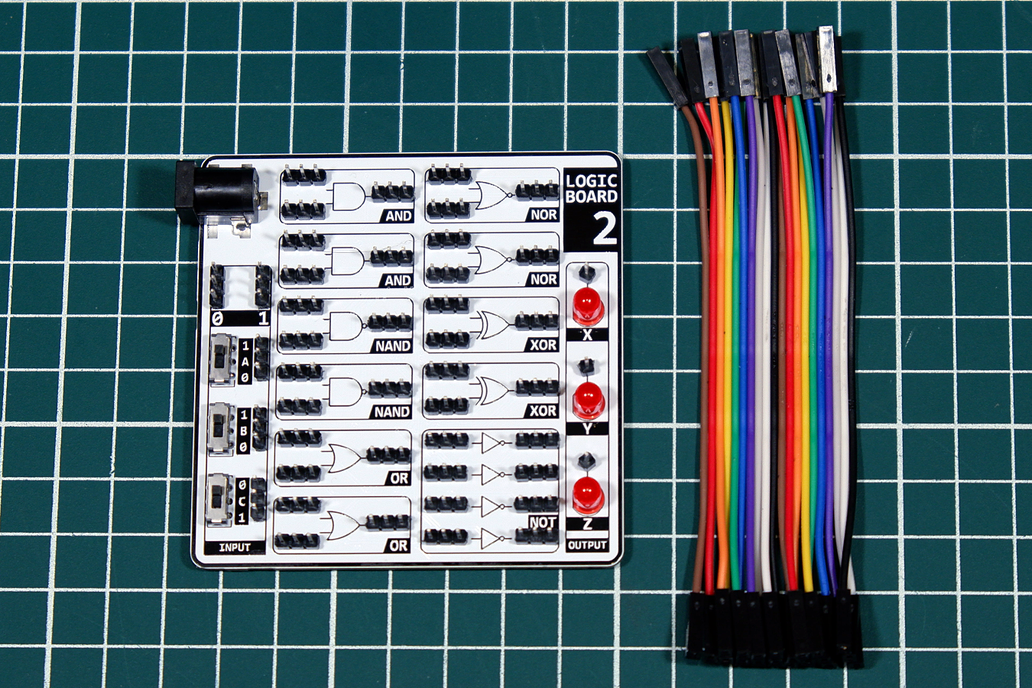

• 1 x LogicBoard 2
• 20 x 10cm Female-Female Jumper Cable
