An open-source developer kit based on a removable nRF52840 M.2 module, designed for IoT prototyping
Designed by makerdiary in China
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
Description nRF52840 M.2 Developer Kit is a versatile IoT prototyping platform, including the nRF52840 M.2 Module and M.2 Dock. You can use the developer kit to prototype your IoT products and then s…
Read More…nRF52840 M.2 Developer Kit is a versatile IoT prototyping platform, including the nRF52840 M.2 Module and M.2 Dock. You can use the developer kit to prototype your IoT products and then scale to production faster using the nRF52840 M.2 Module combined with your custom PCB hardware.
The nRF52840 M.2 Module is a removable M.2 E-Key form factor module based on the nRF52840 SoC, supporting Bluetooth 5, Bluetooth mesh, Thread, Zigbee, 802.15.4, ANT and 2.4 GHz proprietary stacks.
The M.2 Dock extends the interfaces compared to the nRF52840 M.2 Module through an M.2 E-Key connector. This design also features a fully-integrated DAPLink debugger with Power Profiling, enabling you to program, debug and perform real-time current profiling of your applications without using external tools.

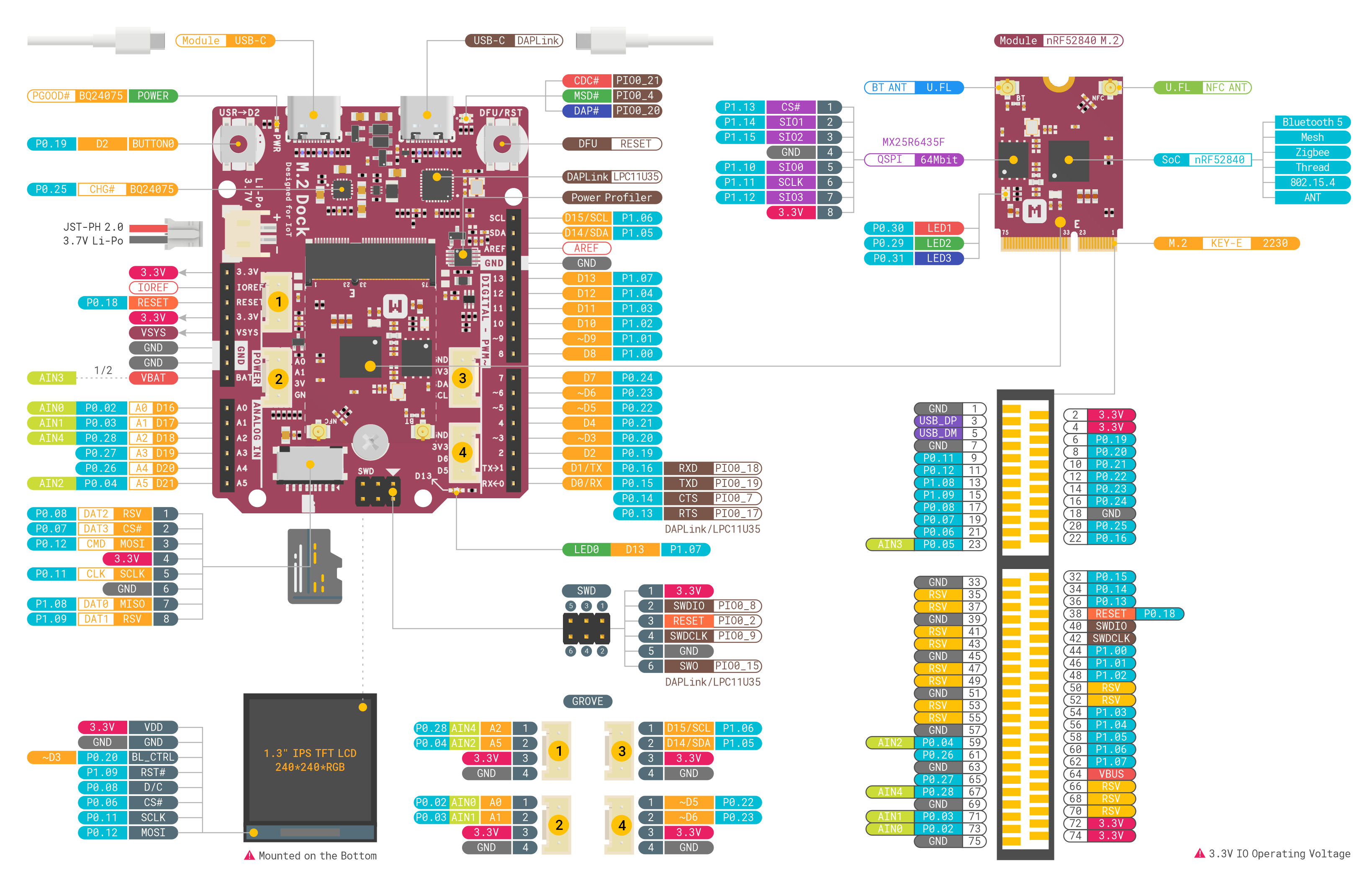

The hardware diagram of the nRF52840 M.2 Developer Kit is shown below:
Download the full hardware diagram as PDF here.
We think the best way to learn is by doing. And to help you get started, we have provided a series of tutorials. Find the details below:
