Composite Video Mod PCB for Vintage Game Consoles

Name: Composite Video Mod PCB for Vintage Game Consoles
SKU: 40246
Price: 24.00 USD
Availability: InStock

Add composite video and mono sound output to Colecovision, Intellivision, Odyssey 2, or Channel F console

Sold By Low Budget

Composite Video Mod PCB for Vintage Game Consoles 1

Composite Video Mod PCB for Vintage Game Consoles 2

Composite Video Mod PCB for Vintage Game Consoles 3

Composite Video Mod PCB for Vintage Game Consoles 4

Composite Video Mod PCB for Vintage Game Consoles 5

Composite Video Mod PCB for Vintage Game Consoles 6

Composite Video Mod PCB for Vintage Game Consoles 7

2025-10-13T22:42:55.215Z-Colecovision composite 1.jpg

2025-10-13T22:42:55.215Z-Colecovision composite 2.jpg

2025-10-13T22:42:55.215Z-Channel F composite 1.jpg

2025-10-13T22:42:55.215Z-Channel F composite 2.jpg

2025-10-13T22:42:55.215Z-Intellivision composite 1.jpg

2025-10-13T22:42:55.215Z-Odyssey 2 composite 1.jpg

2025-10-13T22:42:55.215Z-Odyssey 2 composite 2.jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Add composite video and mono sound output to Colecovision, Intellivision, Odyssey 2, or Channel F console

I am offering 4 different mod PCBs for various consoles which replace the original RF video output with composite video and mono line out audio via RCA jacks. Enjoy improved audio and video quality f…

I am offering 4 different mod PCBs for various consoles which replace the original RF video output with composite video and mono line out audio via RCA jacks. Enjoy improved audio and video quality from your favorite vintage game console while making them compatible with modern TVs.

The circuit schematics used in these PCBs are open source designs. I made PCBs based on these designs so assembling them on prototype PCB isn't necessary.

Installation requires soldering the 4 voltage, ground and A/V input pads to the correct points on the console's PCB, then 3 wires to the RCA output jacks. The PCB / wires are secured with kapton and/or insulated double sided tape (not included.)

Installation guides available at the following links:

Fairchild Channel F: Note: Audio portion of PCB comes unassembled due to different components required on different hardware versions.

Mattel Intellivision 2: Note: RF box must remain in place and connected with video / audio tapped off existing wires. Be sure to connect power to 5v and not 12v going to the RF box.

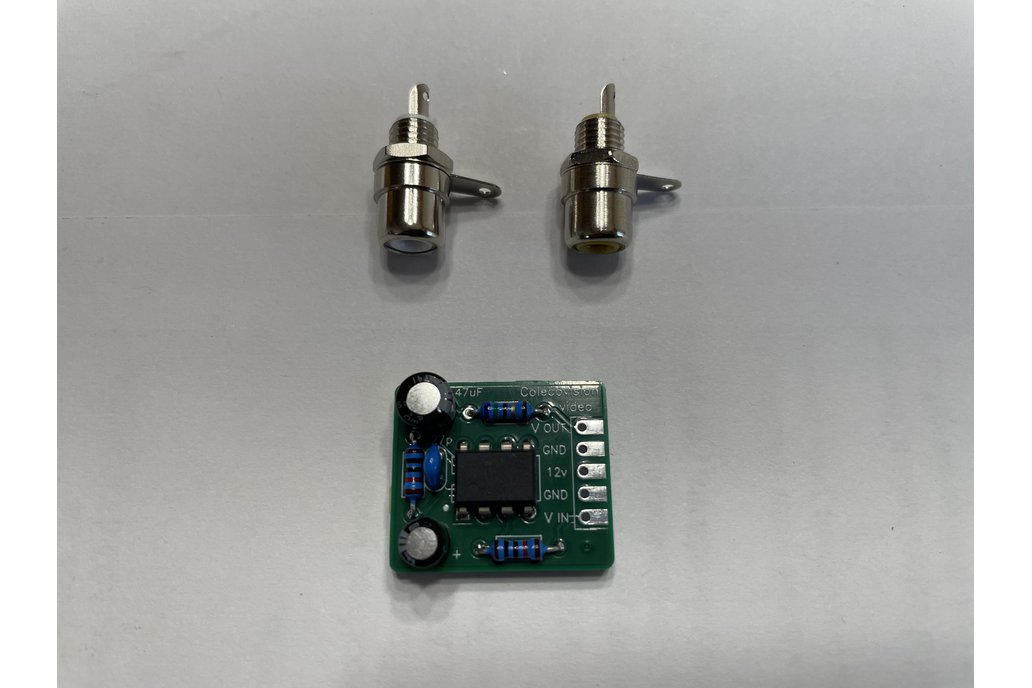

Colecovision: Note: Includes 10uF audio capacitor

Magnavox Odyssey 2: Note: Recommended to disconnect 3 pin connector from RF box, but this can be left in place.

Includes assembled mod PCB for the selected console and yellow / white panel mount RCA jacks. Requires wire (24-26ga recommended) and mounting tape.
