Amplifier LNA 1.4dB NF 2GHz to 18GHz 20dB Gain 13dBm P1dB SMADesigned by LOTUS, Ships from United States of America
LNA2G18G is a broadband, low noise amplifier with 19 dB typical gain from 2 to 18 GHz in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1A2). Third order linearity (OIP3) is typica...Read More…
LNA2G18G is a broadband, low noise amplifier with 19 dB typical gain from 2 to 18 GHz in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1A2). Third order linearity (OIP3) is typically 23 dBm and reverse isolation is >35 dB.
Listed pictures include Product Picture and S Parameter from 2 to 18GHz.
* Frequency Range: 2GHz to 18GHz; * Noise Figure: typical 1.4dB @ 10 GHz * Gain: typical 20B @ 10 GHz * Output P1dB: 13 dBm * Output IP3: 23 dBm * DC Voltage: +3.3~+5V * Operating Current: 60mA * Stainless Steel SMA Female Connector * High Quality Isola-Tera RF PCB (very low loss and high thermal performance) * ROHS Compliant
* Test Instrumentation * Wideband A/D System * General Purpose Wireless * Radar & VSAT * SDR & Ham Radio

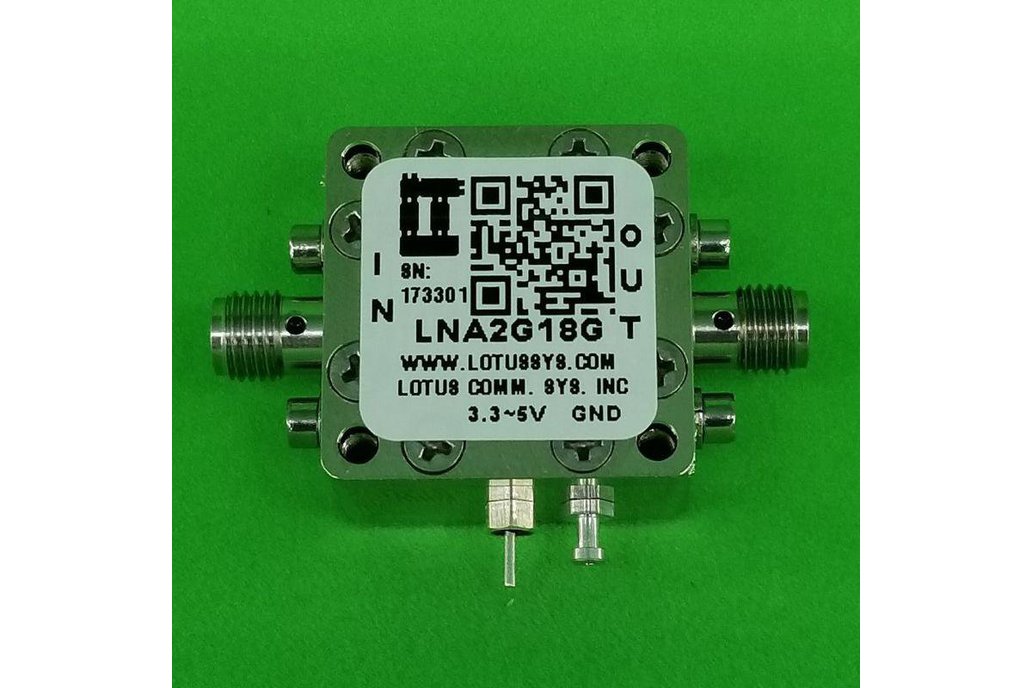

This LNA includes the RF Enclosure as shown in picture.
Click here to see a detailed specification.
Proudly MADE IN USA.
