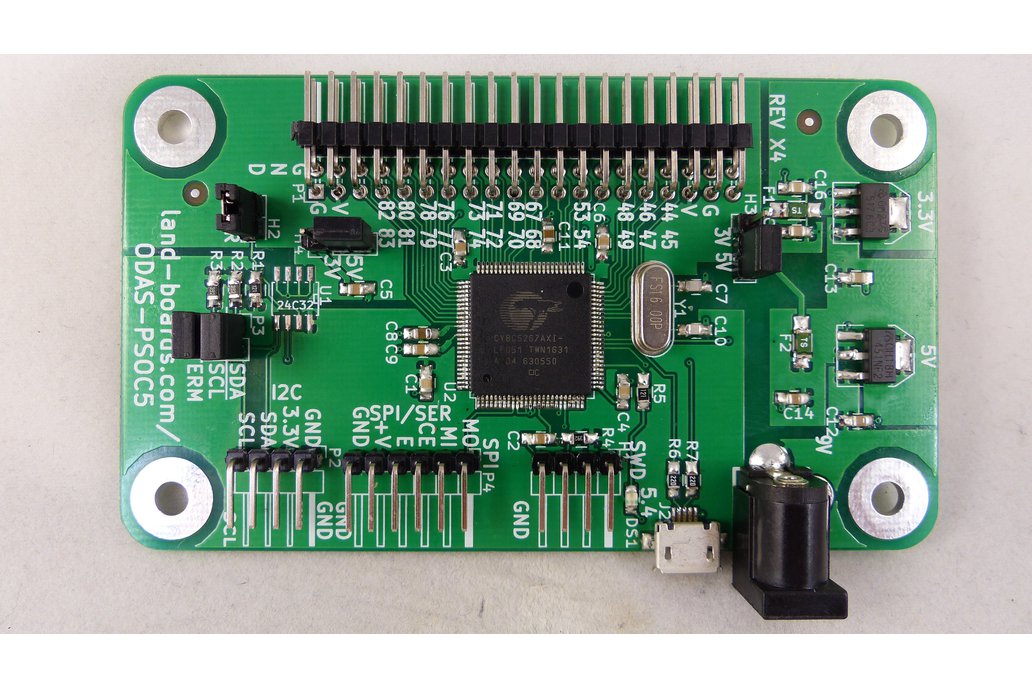

Programmable System on a Chip (PSOC) Card

Cypress PSOC5LP parts are pretty special parts. They combine an ARM CORE processor with a programmable circuitry area. This area can contain both digital logic and analog circuitry. The functions of this are can be set by programming the part.

Another powerful feature of this Programmable System on a Chip (PSOC) parts is selectable 3.3V or 5V I/O lines. Very few programmable logic parts can output 5V. This makes the card extremely powerful at the center of any test station design which interfaces to legacy hardware.

Features

• SOC part CY8C5267AXI-LP051
• Core: ARM Cortex M3
• Data Bus Width: 32 bit
• Maximum Clock Frequency: 67 MHz
• Program Memory Size: 128 kB
• Data RAM Size: 32 kB
• ADC Resolution: 12 bit
• Data RAM Type: SRAM
• Interface Type: I2C, USB
• Number of ADC Channels: 1
• Number of I/Os: 72 I/O
• Number of Timers/Counters: 4 Timer
• Program Memory Type: Flash
• 16 MHz External Crystal
• Connectors
• USB Connector (USB-B Mini)
• I/O Connector (30 I/O lines which can be analog or digital connections)
• I2C Connector (4-pin header)
• SPI Connector (6-pin header)
• Configuration EEPROM
• 9V power input
• Fuses on 3.3V and 5V power
• 95x45mm Form Factor
• Compatible with Land Boards Open Data Acquisition System (ODAS) Cards
• (4) #6 screw holes for solid mounting
