What is it?

It is the best IC Tester and Programmer Based on USBASP! USBASP Programmer, AVR Programmer, and I2C 24CXXX and 93Cxx EEPROM Programmer!. Auto Detect Digital IC's (TTL/CMOS-74000,40000,54000)! Auto Detect AVR Chips inserted in ZIF socket. All in One!

Why did you make it?

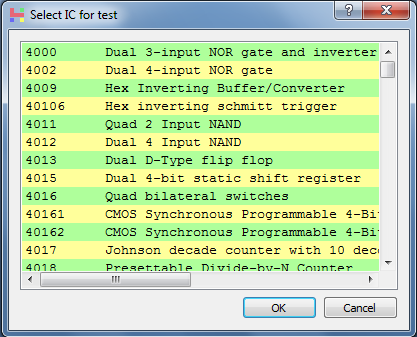

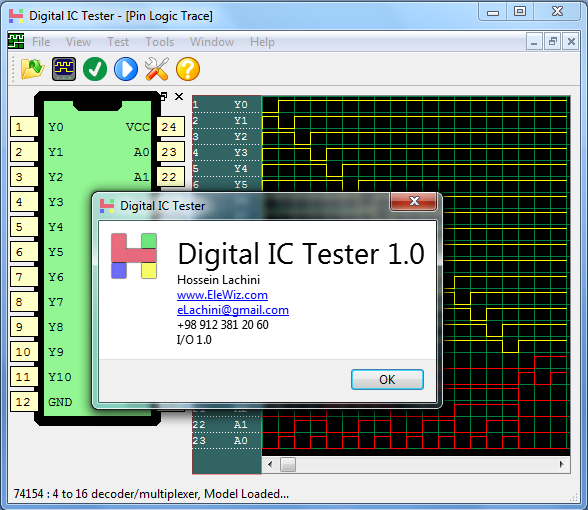

You can easily Test All 4000/74000/54000 and other Chip like ULN28XX and 555 Timer and ... only by inserting all chips from pin 1 of the ZIF socket.

Software writes in QT for Windows and can compile to use in Linux/Android/Mac/iOS OS if you order.

You can easily program all AVR by inserting all DIP into ZIF socket from Pin 1 of ZIF! it is based on USBASP and you can easily use in all software like AVRDUDE, BASCOM, CodeVisionAVR, Atmel Studio and ...! it is work in all operating systems like Windows, Linux, Android, Mac, iOS. you can see about programmer features in the flowing link : https://www.tindie.com/products/lachini/sana-usbasp-programmer-and-89s5x--24cxxx--93cxx/

Features

• Programming all AVR microcontrollers in SPI mode
• Programming 89S51, 89S52, 89S53 in SPI mode
• Programming I2C Serial EEPROM from 24C00 to 24C512
• Programming 93C46, 93C56, 93C66, 93C76, 93C86 EEPROM
• Very Small and Portable, Pocket Size (71 x 46 x 19 mm)
• ISP Cable For ATMEL 89S5X, AVR
• 40 Pin ZIF Socket
• Insert all chip from pin1 of the ZIF socket
• Generate CLOCK signal for XTAL1 pin on microcontrollers to cover all state of - CKSEL fuse bit
• Automatic device identification
• Auto speed detect for AVR programming
• USB programmer
• USB powered (No Need for External Supply)
• Support in BASCOM, CodeVision, AVRDUDE
• User-friendly software for Windows, Linux, MAC OS, Android
• One socket for programming all different microcontrollers!

Digital IC Compatibility

40xx and 74xx and 54xx series: Test all digital IC (40xx and 74xx series) : 40106 4011 4012 4013 4016 7400 7401 7402 7403 7404 7405 7406 7407 7408 7409 7410 7411 7412 74125 74126 7413 74132 74133 74138 74139 7414 74145 7415 74151 74154 7416 74164 7417 7418 7419 7420 7421 7422 74244 74245 7427 74273 7430 7432 74365 74373 7438 7442 7474 7475 7485 7486 7490 7492 7493 7495 and more ...

Other IC Compatibility

555 Timer 817 optocoupler ULN2803: 8 Channel Darlington Driver

EEPROM Compatibility

The SANA USBasp AVR Programmer is designed to support a wide variety of 24CXX EEPROM : 24C00, 24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C128, 24C256, 24C512.

and 93Cxx EEPROM : 93C46, 93C56, 93C66, 93C76, 93C86.

AVR Mega series

ATmega8 ATmega8A ATmega48 ATmega48A ATmega48P ATmega48PA ATmega88 ATmega88A ATmega88P ATmega88PA ATmega168 ATmega168A ATmega168P ATmega168PA ATmega328 ATmega328P ATmega103 ATmega128 ATmega128P ATmega1280 ATmega1281 ATmega16 ATmega16A ATmega161 ATmega162 ATmega163 ATmega164 ATmega164A ATmega164P ATmega164PA ATmega169 ATmega169A ATmega169P ATmega169PA ATmega2560 ATmega2561 ATmega32 ATmega32A ATmega324 ATmega324A ATmega324P ATmega324PA ATmega329 ATmega329A ATmega329P ATmega329PA ATmega3290 ATmega3290A ATmega3290P ATmega64 ATmega64A ATmega640 ATmega644 ATmega644A ATmega644P ATmega644PA ATmega649 ATmega649A ATmega649P ATmega6490 ATmega6490A ATmega6490P ATmega8515 ATmega8535

AVR Tiny Series

ATtiny10 ATtiny11 ATtiny12 ATtiny13 ATtiny13A ATtiny15 ATtiny167 ATtiny22 ATtiny24 ATtiny25 ATtiny26 ATtiny261 ATtiny28 ATtiny4 ATtiny43U ATtiny44 ATtiny45 ATtiny461 ATtiny48 ATtiny5 ATtiny84 ATtiny861 ATtiny85 ATtiny88 ATtiny9 ATtiny2313 ATtiny2313A

AVR CAN Series

AT90can128 AT90can32 AT90can64

AVR PWM Series

AT90PWM2 AT90PWM216 AT90PWM2B AT90PWM3 AT90PWM316 AT90PWM3B AT90PWM81

AVR Classic Series

AT86RF401AT90S1200 AT90S2313 AT90S2323 AT90S2343 AT90S4414 AT90S4433 AT90S4434 AT90S8515 AT90S8535 AT90SCR100H

AVR USB Series

AT90USB1286 AT90USB1287 AT90USB162 AT90USB646 AT90USB647 AT90USB82

Cross-platform compatibility

The SANA USBasp IC Tester/AVR Programmer is compatible with all major operating systems - Mac OS X, Windows, and Linux. It can also be used from the BASCOM or via avrdude.

OS X and Linux users won't need to install any drivers. Windows users will simply need to install the USBasp drivers found on the USBasp website.

Questions / Comments / General feedback

If you've got any questions, comments, suggestions, or just general feedback about the programmer, please feel free to contact me. Your feedback helps me make better products!

Package includes the following:

• Bag
• USB AM / BM cable 0.5m
• CD
• ISP cable
