Fibonacci64 is a beautiful 86mm circular disc with 64 WS2812B RGB LEDs surface mounted in a Fibonacci distribution.
Designed by Evil Genius Labs LLC in United States of AmericaNo shipping info available.
Set destination country to see options
Shipping to starts at
Free shipping is available to !
Ships from
This item does not ship to .
More Info
Sign up to get notified when this product is back in stock!
Fibonacci64 is a beautiful 86mm circular disc with 64 RGB LEDs surface mounted in a Fibonacci layout. I have created several LED art pieces in Fibonacci patterns. They are all very labor intensive t…
Read More…Fibonacci64 is a beautiful 86mm circular disc with 64 RGB LEDs surface mounted in a Fibonacci layout.
I have created several LED art pieces in Fibonacci patterns. They are all very labor intensive to create, and so are fairly expensive and limited in quantity. I wanted to come up with a Fibonacci layout that was at least slightly easier to create, and therefore more affordable.
I have RGB LEDs in just about every form they come: strips, strings, rings, discs, etc. The LEDs on most discs are arranged in very regular rings. Fibonacci64 is different. The LEDs are arranged in a Fibonacci distribution. The makes the layout very organic and seemingly messy. But with the proper animation, spiral patterns emerge with spectacular results.
Each of the 64 WS2812B RGB LEDs has its own decoupling capacitor to reduce noise. The top and bottom of the PCB are large 5V and GND planes, to allow for the large amount of current required by the 64 LEDs. Two separate three-pin headers are provided. One for 5V, Data In, and GND, and the other for 5V, Data Out, and GND. The Data Out pin can be used to connect to even more LEDs.
Case Options

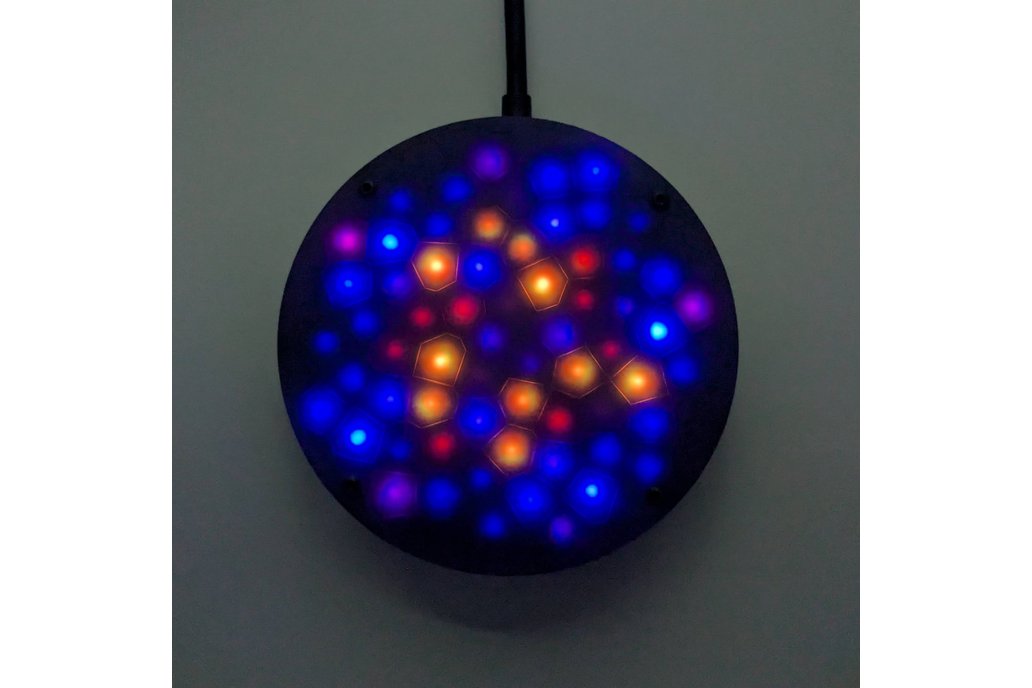

The open case is built with 3mm black LED acrylic diffuser, black nylon M3 standoffs, black metal M3 screws, and 3D printed back plate with wall mounting hole. Available as kit or fully-assembled. More info and files are available on Thingiverse.
The white 3D printed case is still a work in progress, but the files are available on Thingiverse and Prusa Printers.
Specifications
Parts
Options available to purchase for additional amount:
The "Fully Assembled" option requires, but does not include, a USB C cable and power source (USB port, AC power adapter, battery pack, etc).
If the "Fully Assembled" option is not chosen, these parts are not included, but are required to assemble and use:
Parts I use in my builds:
