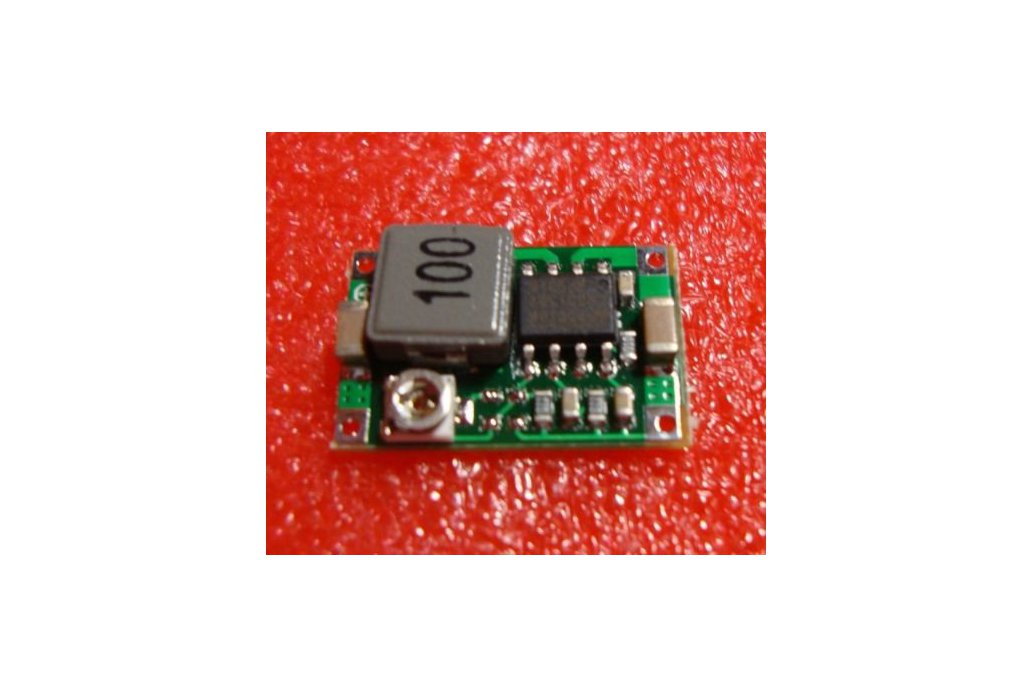

Mini DC-DC Converter Step Down Module Adjustable (Input 4.75v-20v, Output 1v-17V)Sold By RC Innovations
Specifications: high quality brand new. Non-isolated step-down module (BUCK) Rectification: Synchronous rectification I/P voltage: DC 4.75V-20V O/P voltage: DC 1.0V-17V (Adjustable, Output < Input…Read More…
Specifications: high quality brand new. Non-isolated step-down module (BUCK) Rectification: Synchronous rectification I/P voltage: DC 4.75V-20V O/P voltage: DC 1.0V-17V (Adjustable, Output < Input) Output current: Rated current 1.8A (3A MAX, can not be prolonged) Output ripple:30mV(no-load) Load regulation:±0.5% Voltage regulation:±2.5% Operating Temperature: Industrial (-40℃ ~ +85℃) NO Short circuit protection NO Input Reverse protection Dimension: 17mm11mm4mm(LWH)
see other listing for larger version with two outputs
