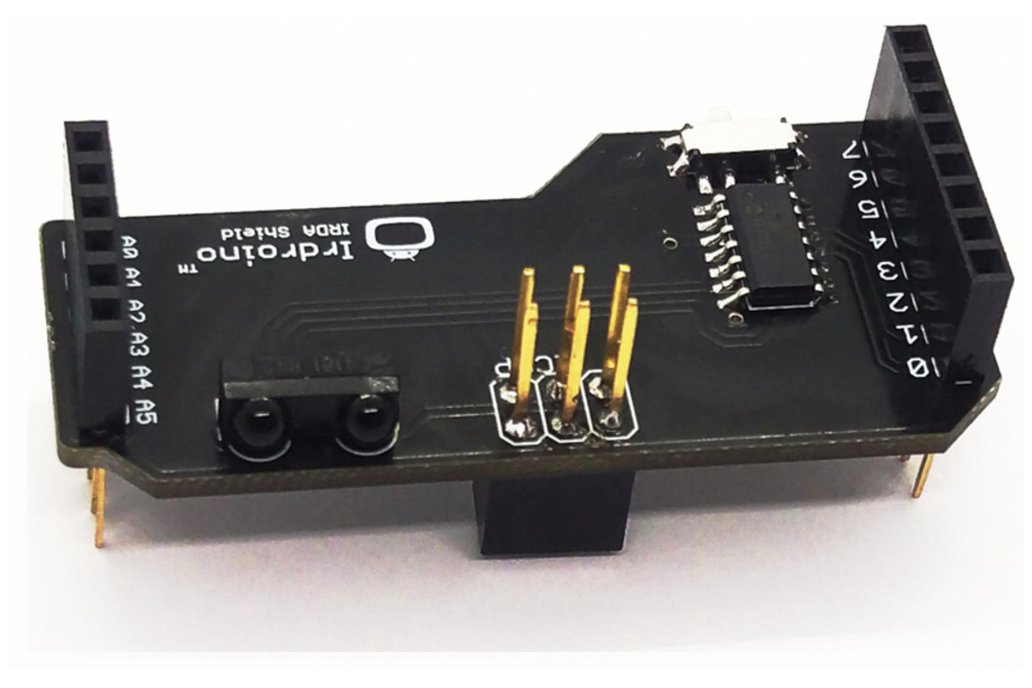

The Irdroino IrDA shield is a shield for Arduino that will allow you to communicate with IrDA compiant equipment such as devices that support IrDA SIR communication up to 115200 bps (Power Meters, PDAs , data acquisition devices and other devices that communicate via IrDA SIR ).

Features:

• Compatible with Arduino UNO board layouts
• Supports with IrDA® Physical Layer Specification (version 1.3)
• High quality infrared transceiver
• Up to *5 meters IrDA SIR communication
• Supports baud rates from 9600 – 115200 bps
• Demo code that demostrates how to communicate with the Shield

Example Usage:

• Interfacing with irDA power meters
• Interfacing with irDA printers
• Interfacing with irDA PDAs
• Data communication between two Raspberry Pi's
• Any other devices that communicate via irDA SIR

The Irdroino IrDA shield comes pre-configured for 9600 bps serial IrDA communication. The baud rate can be configured by using the on board switch (which switches the IrDA controller in command mode) and sending a hex commands representing the other baud rates for the MCP2120 serial IrDA controller.
