CD4017+NE555 White 3x16 LED Flashing Flash Light Lamp DIY Kit
Designed by ICStation in ChinaNo shipping info available.
Set destination country to see options
Shipping to starts at
Free shipping is available to !
Ships from
This item does not ship to .
More Info
Sign up to get notified when this product is back in stock!
★Wholesale Price can be offer for bulk order from 50pcs.
Please feel free to contact us if you are interested in it.
Description This suite composed by NE555 multivibrator and CD4017 decimal counter/pulse distributor. It can control three color LED board. With the function of flickering effect. High brightness, eas…
Read More…This suite composed by NE555 multivibrator and CD4017 decimal counter/pulse distributor. It can control three color LED board.

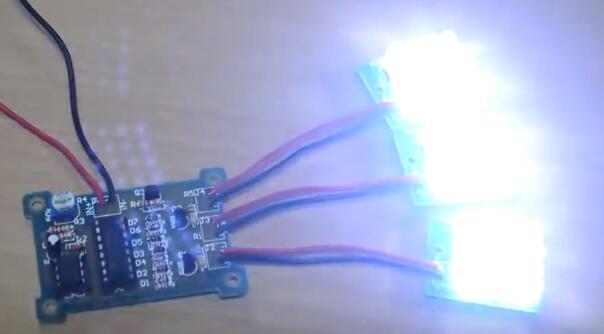

With the function of flickering effect.
High brightness, easy to soldering.

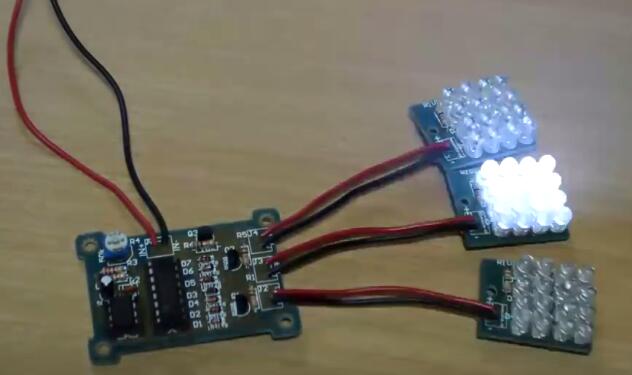

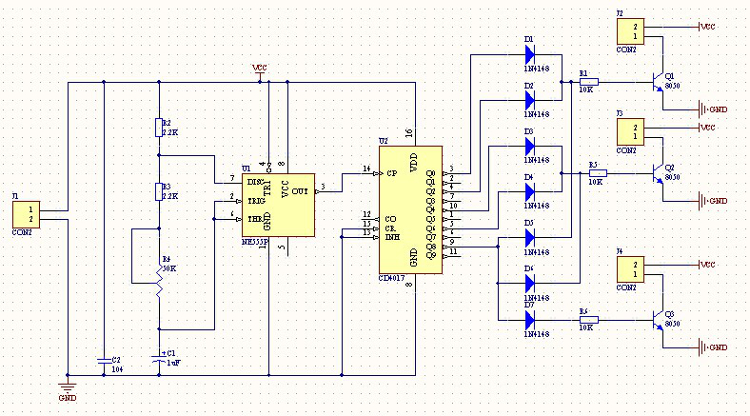

This suite composed by NE555 multivibrator and CD4017 decimal counter/pulse distributor. When 3, 4, 9 pulse arrives, Q1 conduction, shiny and J2 link LEDs plate 3 times, 5, 9, 10 pulse arrives, Q2 conduction, shiny and J3 link lEDs plate 3 times. When the ninth pulse arrives, Q3 conduction, shiny and J4 link LEDs plate 1, circulation LED shine alternately in turn. Change R4 size can change the period of oscillation, which changed the LED shining speed.
Working voltage: 12VDC

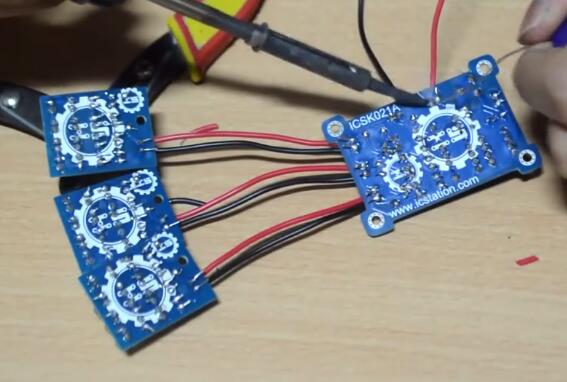

Control board PCB size: 5.9 * 4.1CM
Display board PCB size: 3.3 * 2.6CM
Component | Lable | Footprint | Value | QTY |
---|---|---|---|---|
Ceramics capacitors | C2 | RAD-0.2 | 104 | 1 |
Electrolytic capacitor 50V/1uf | C1 | RB.1/.15 | 1UF | 1 |
S8050 | Q1, Q2, Q3 | TO-92 | 3 | |
XH2.54-2P | J1, J2, J3 | XH2.54-2P | 3 | |
1N4148 | D1, D2, D3, D4, D5, D6, D7 | TO-35 | 7 | |
NE555 | NE555 | DIP8 | 1 | |
CD4017 | CD4017 | DIP14 | 1 | |
Resistor | R1, R5, R6 | 10K | 3 | |
Resistor | R2, R3 | 2.2K | 2 | |
Horizontal potentiometer | R4 | 50K | 1 | |
Control board PCB | N |
Tested by partner GetTutorialized KD:
Enjoy video here ^0^
