RDA5807 FM Radio Receiver DIY Kit with RGB Flashing LED Indicator

1.Introduction: It is an RDA5807 87.0MHz-108.0MHz Wireless FM Radio Receiver DIY Kit with RGB spectrum indicator flashing automatically. It has a blue LCD1602 display screen which can clearly displ…

1.Introduction:

It is an RDA5807 87.0MHz-108.0MHz Wireless FM Radio Receiver DIY Kit with RGB spectrum indicator flashing automatically.
It has a blue LCD1602 display screen which can clearly display the receiving frequency.

2.Feature:

Built-in volume adjustment
RGB spectrum indicator flashing automatically
Support 87Hz-108MHz receiver frequency
Built-in 5W power amplifier
LCD1602 display screen

3.Parameter:

Product Name:RDA5807 FM 87-108MHz Radio Receiver LCD1602 DIY Kit
Work Voltage:DC 4.5V~5.5V
Output impedance:4ohm
Output power:5W
Output channel:Mono
Receiver Frequency:87.0MHz~108.0MHz
Frequency accuracy:0.1MHz
Equivalent noise: >=30dB
Work Temperature:-40℃~85℃
Work Humidity:5%~95%RH
Size(Installed):90x70x55mm

4.Use Methods:

Press left button to turn ON/OFF power supply.
Press right button to turn ON/OFF spectrum indicator.
Press S+ or S- to adjust volume.
Press P+ or P- to adjust receive frequency and FM station.

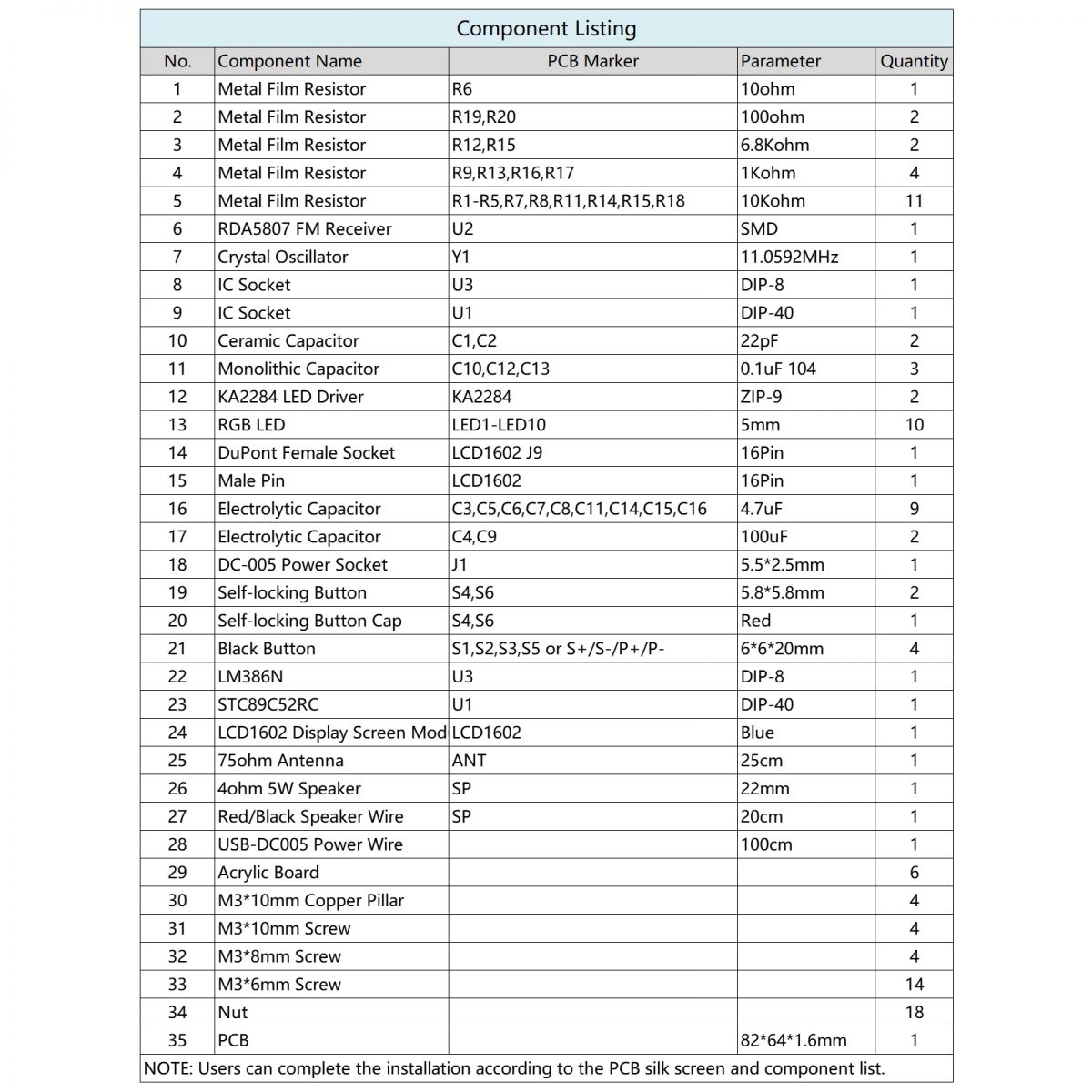

5.Components List:

6.Note:

It is a wireless module. So do not use it in an environment with signal interference.
There is a SMD component so that you can place it on PCB and then fix by tin.
