1.Description:

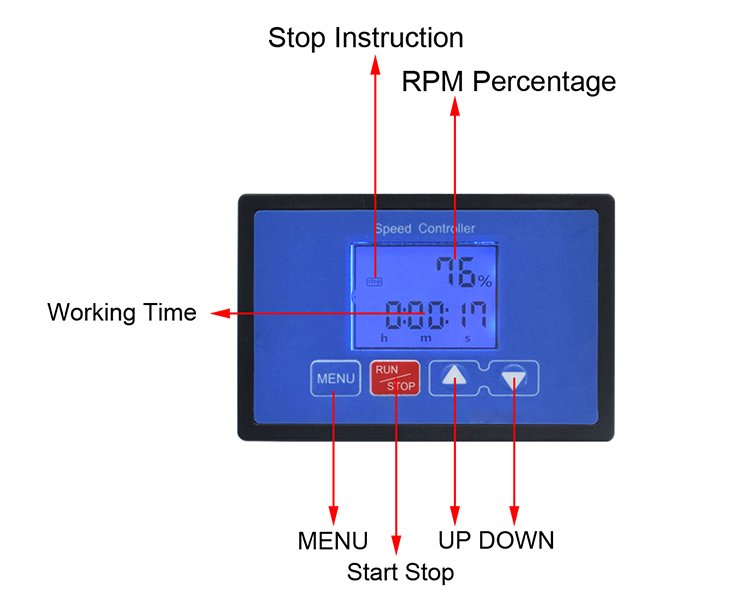

It is a digital tachometer.It uses LCD screen with backlight,which can display working time and 0-100% speed percentage.

2.Feature:

• It is equipped with a wireless remote control,which can control the module through the remote control.
• It can set slow start and slow stop time.
• It can set upper and lower speed limits
• It can set the totol woking time and stop when the time is up.
• It can set the running time and stop time,and automatically cycle the start and stop time repeatedly.
• It can set the limit of automatic start and stop times.
• It uses electric buttons for acceleration and deceleration,which solves the problem that traditional potentiometers are fragile.

3.Parameter:

• Product Name:Digital Tachometer
• Input Voltage:DC 6.5V-55V
• Instanyaneous Current:30A
• Continuous Current:20A(Max)
• Speed Regulation Type:Regulating Current
• Speed Regulation Mode:Electric +/-
• Speed Digital Display:0-100%
• Speed Regulation Range:0-100%
• Control Frequency:15KHz
• Wiring Type:Barrier terminal block
• Support Motor:Brushed motor
• Security Mode:embedded
• Work Temperature:-25℃~85℃
• Work Humidity:5%~95%RH

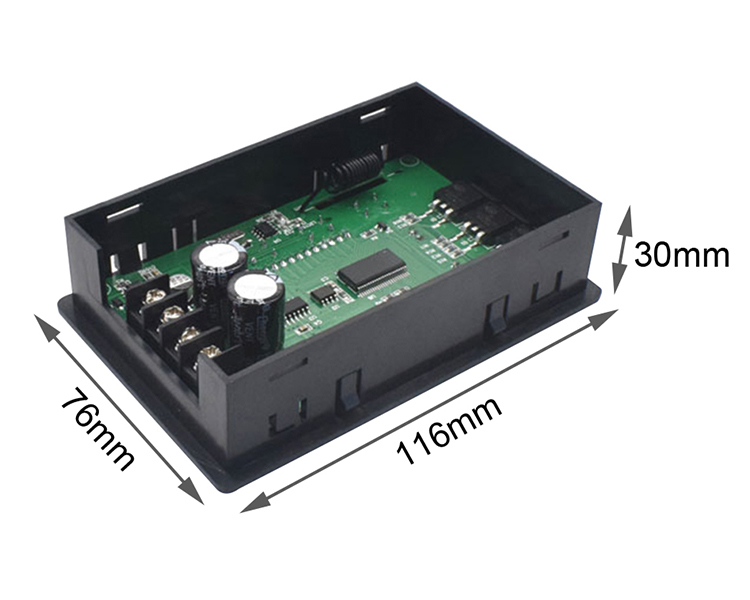

• Size:116x76x30mm
• Remote Control Distance:Within 100 meters (in the open space without obstruction)

4.Function Settings:

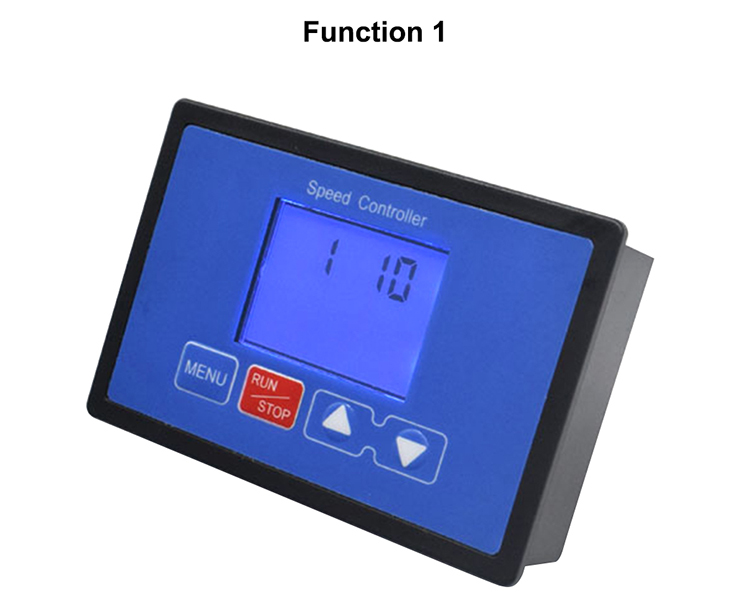

• Function 1:Slow start time setting
• Percentage setting range:0-100%,time range:0-10 seconds adjustable

• Press the MENU button once to enter the function 1 setting button surface,press the plus and minus keys to set the time,long press MENU to save and exit (10% is 1 second,100% is 10 seconds).

• Function 2:Slow stop time setting

• Percentage setting range:0-100%,time range:0-10 seconds adjustable

• Press the MENU button twice to enter the function 2 setting button surface,press the plus and minus keys to set the time,long press MENU to save and exit (10% is 1 second,100% is 10 seconds)

• Function 3:lower limit of speed setting

• Percentage setting range:0-80%

• Press the MENU button 3 times to enter the function 3 button surface,press the plus and minus keys to set,long press MENU to save and exit.

• Function 4:Speed upper limit setting

• Percentage setting range:0-100%

• Press the MENU button 4 times to enter the function 4 button surface,press the plus and minus keys to set the size value,long press the MENU button to save and exit.

• Function 5:Acceleration and deceleration value setting

• Speed value:1%,2%,5%,10%,15%,20%,25%,each time you press the plus or minus key,the speed will change accordingly.

• Press the MENU button 5 times to enter the function 5-key interface,press the plus and minus keys to switch,long press MENU to save and exit.

• Function 6: Motor running time setting

• Time setting range:1 second - 99 hours 59 minutes 59 seconds

• Press the MENU key 6 times to enter the function 6 key surface,the default is the maximum time of 99 hours,59 minutes and 59 seconds,the RUN/STOP key switches hours/minutes/seconds, and press plus or minus to adjust the size of hours/minutes/seconds.Press MENU to save and exit.

• Function 7:Motor stop time setting

• Time setting range:1 second - 99 hours 59 minutes 59 seconds

• Press the MENU button 7 times to enter the function 7 button surface,the default is the maximum time of 99 hours,59 minutes and 59 seconds.MENU save and exit.

• Function 8: Motor start and stop cycle times

• Cycle times:1-999 times

• Press the MENU button 8 times to enter the function 8-key interface,the default is a maximum of 999 times, press the plus and minus keys to adjust,long press MENU to save and exit.

• Function 9:with or without timing option

• 0:no,1:yes

• Press the MENU button 9 times to enter the function 9-key interface,the default 1 has timing function,0 has no timing,press the plus and minus keys to switch,long press MENU to save and exit.

• Long press the RUN/STOP key to turn off the backlight.

5.Note:

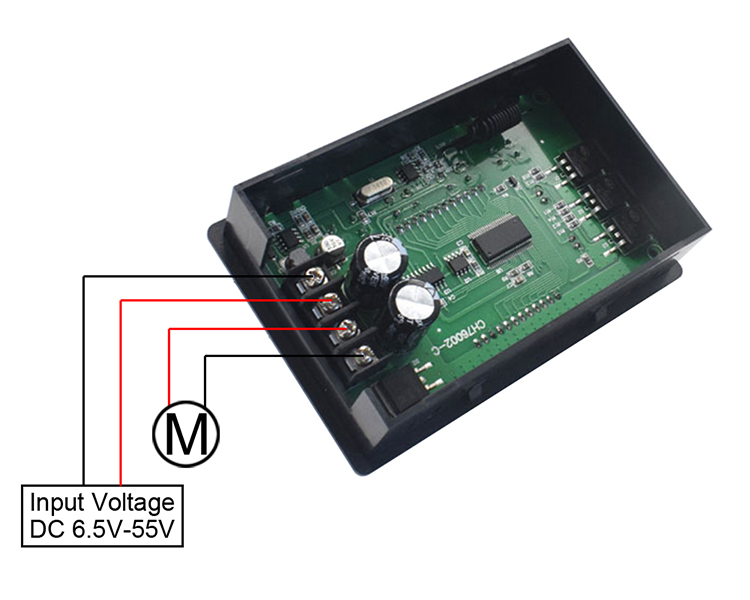

• The input must be positive and negative,and the input voltage must be equal to the rated voltage of the motor.
• For example,the rated voltage of the motor is 12V,the input governor is 12V,the rated voltage of the motor is 36V,and the input governor voltage is 36V.

6.Package:

• 1pcs Digital Tachometer
• 1pcs Remote Control
