Features

• Supports USB-PD 3.0 (100W)
• Dual Channel Power Supply
• CH1: 5V, 9V, 12V, 15V, 20V / 5A (100W Max)
• CH2: 3.3V, 5V / 2A (10W Max)
• Short Circuit Protection
• Synchronous Buck Converter
• 0.28 Inch Voltage Display
• 2x3 2.54P, 3.5P Screw Terminal CH1, CH2 Output
• Dimensions: 53x23mm
• Weight: 12g

Applications

• Breadboard prototyping
• Powering actuators and high-power loads
• Dual power rail applications

Description

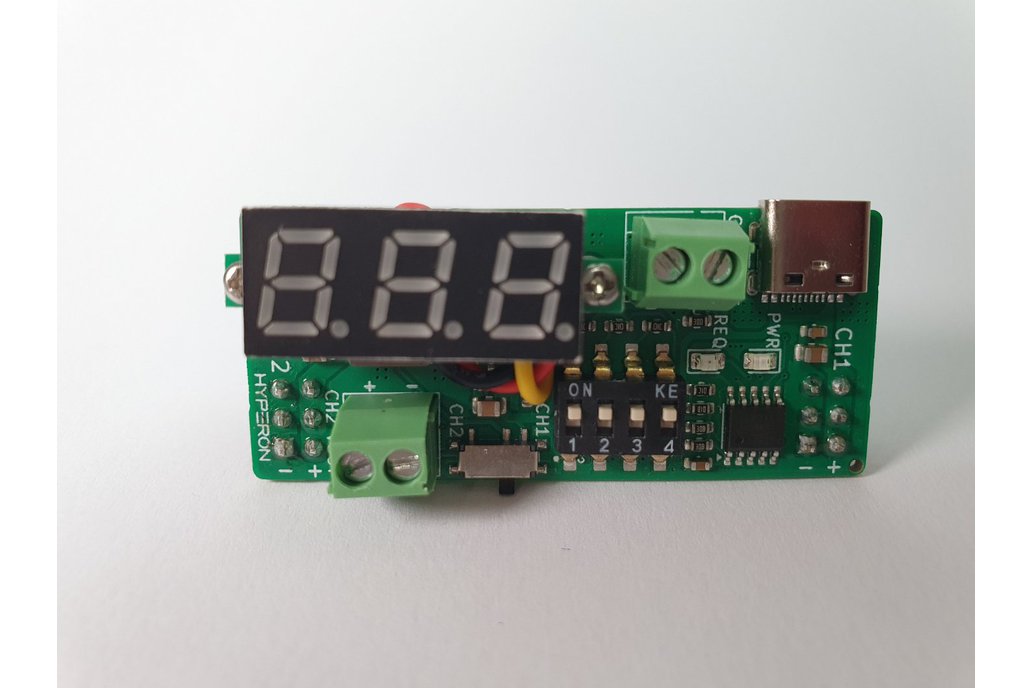

Dual rail USB-PD breadboard power supply with a voltage display CH1: 5V,9V,12V,15V,20V/5A | CH2: 3.3V,5V/2A (Max power 100W) Voltage is selected by 4 DIP switches. 1,2,3 for channel 1 and 4 for channel 2. It has a 0.28 Inch voltage display, able to monitor the bus voltage real time, LMR33630 synchronous buck converter with low output ripple and high efficiency. Dual supply rails are useful when powering circuits that uses a high-power load like an actuator and an MCU.

Note: This module is not a boost converter it requests the voltage that is provided from the source device. Please check if the required voltage is supported on your source device. For power higher than 3A, it is recommended to use the screw terminal outputs.
