Smallest IC2 Isolating PCB with Power
Designed by Hand Crafted Electronics in Germany
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More

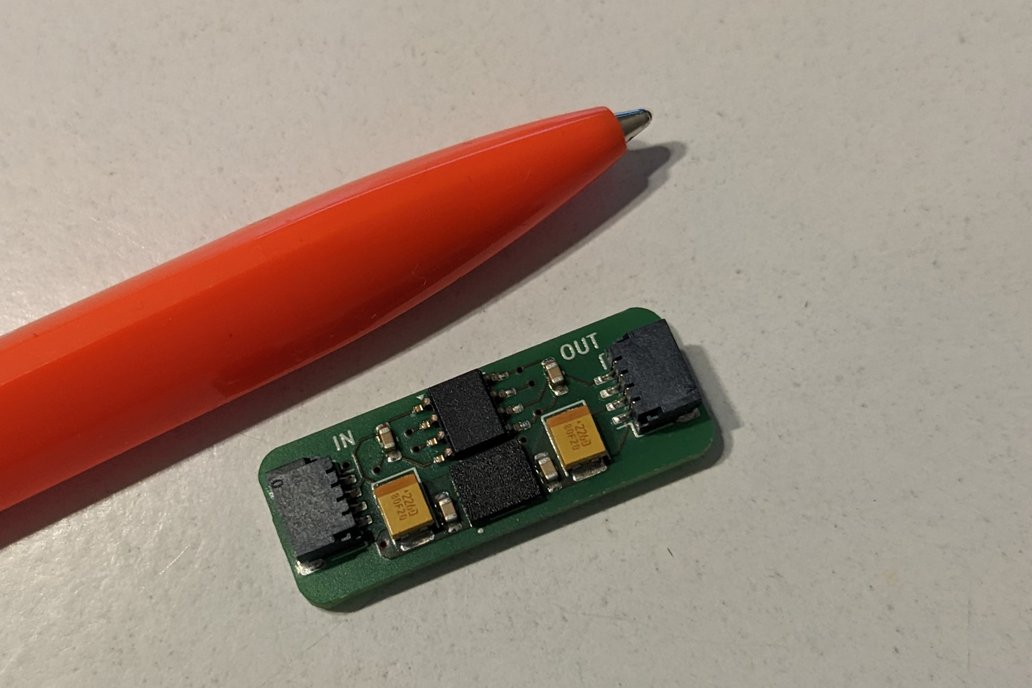

What is it? This is likely the smallest PCB that combines I2C and power isolation in a compact design. It delivers 1W of isolated output power, all within an extremely small form factor. It connects …
Read More…This is likely the smallest PCB that combines I2C and power isolation in a compact design. It delivers 1W of isolated output power, all within an extremely small form factor. It connects seamlessly to your microcontroller project using a STEMMA QT (JST SH 4-Pin) cable, ideal for isolating your sensor board.
Inspired by recent advancements in ultra-compact DC/DC converters, I wanted to see if such miniaturization could be applied in this way—and it does!
This ultra-small PCB provides both I2C and power isolation, easily connecting with familiar STEMMA QT cables.
It features the MIE1W0505BGLVH DC/DC converter alongside the ISO1641 I2C isolator.
Form factor: 2.95cm x 1.12cm = 3.3cm²
No country selected, please select your country to see shipping options.
No rates are available for shipping to .
Enter your email address if you'd like to be notified when Smallest I2C Isolater w/ Power can be shipped to you:
Thanks! We'll let you know when the seller adds shipping rates for your country.
Shipping Rate | Tracked | Ships From | First Item | Additional Items |
---|---|---|---|---|
:
|
Quantity | Price |
---|---|
1 | $18.00 |
2-3 | $17.00 |
4+ | $16.00 |
