PRODUCT OVERVIEW

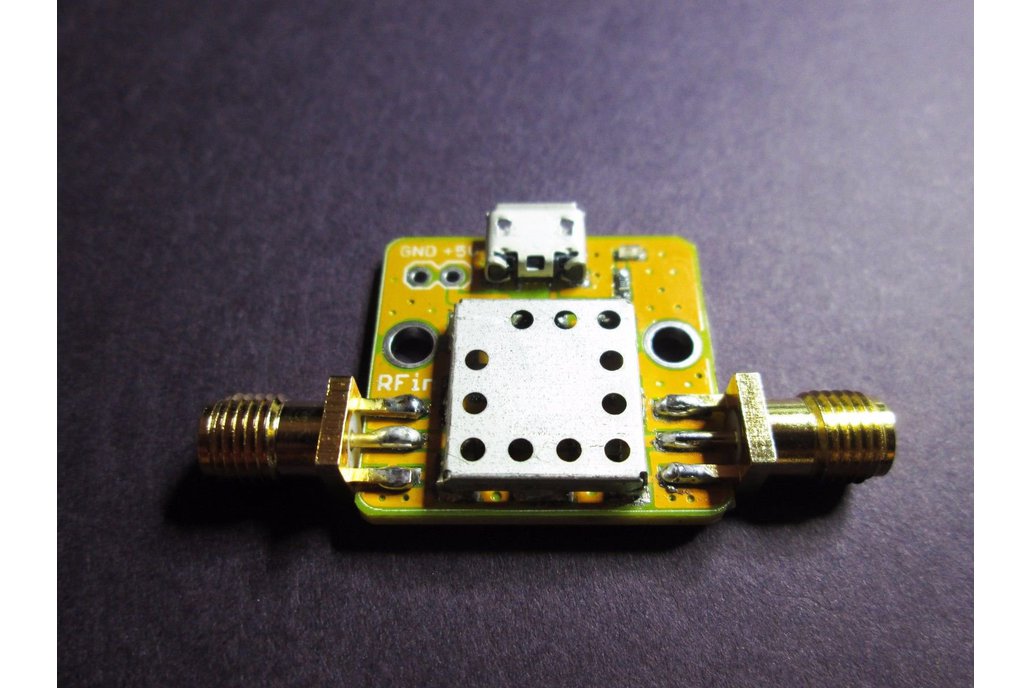

This is a small, cost-effective Pre-Filtered Low Noise Amplifier LNA centred at 915 MHz with a typical gain of 15 dB in the pass band 902-928 MHz. The noise figure of this device is less than 1 dB.

APPLICATIONS

• 915 MHz ISM band applications such as RFID, Industrial monitoring, Automated meter reading, Home security, 33-centimeter (33 cm) amateur radio, etc.

• Rejection of strong signals in adjacent cellular bands

• Filtering in receivers and transmitters

Notes:

• Please note that this LNA is designed to improve the sensitivity of a receiver. It functions as a pre-amplifier for the 915 MHz band. It cannot be used to transmit and receive simultaneously

• This is not a bidirectional amplifier - here is a Helium Amplifier

• If using this amplifier with an external antenna we recommend grounding your antenna to prevent damage to the LNA due to ESD

SPECIFICATIONS

Frequency ......... Typical Attenuation

DC-800 MHz ......... 25 dB

800-880 MHz ......... 20 dB

960-1080 MHz ......... 12 dB

1080-1500 MHz ......... 20 dB

1500-3000 MHz ......... 5 dB

NOTE

The filter uses SMA-F PCB edge mount connectors

Maximum RF Input = -5 dBm
