A LiPo power board with solar/USB power input and peripherals including RTC, analog inputs, PWM outputs, switched USB ports and more.Designed by danjuliodesigns, LLC in United States of America
Works with Pi Zero 2 The Solar Pi Platter is a versatile expansion board for the Raspberry Pi Zero™ and Pi Zero 2 computers that provides power from a single-cell Rechargeable Lithium-Ion battery, …Read More…
Works with Pi Zero 2
The Solar Pi Platter is a versatile expansion board for the Raspberry Pi Zero™ and Pi Zero 2 computers that provides power from a single-cell Rechargeable Lithium-Ion battery, additional peripherals including analog inputs, PWM outputs, USB ports and optional hardwired ethernet. A real-time clock allows for scheduled power cycling. Dual charging sources support both low-impedance devices like common USB chargers and high-impedance devices like Solar Panels. The Solar Pi Platter allows the Pi Zero to be used in a wide variety of applications ranging from solar-powered remote data acquisition systems to battery-backed file servers. The Solar Pi Platter sits underneath the Pi leaving its 40-pin expansion port available for other expansion boards.
I jokingly call the Solar Pi Platter a versatile power board that can run Linux for $5 (and, now $10) more. I designed it in early 2016 as a way to give the amazing Pi Zero a flexible power system and set of peripherals designed for battery powered applications where capable power management was useful. A fellow member of my local makerspace, Solid State Depot, convinced me to launch it as a kickstarter campaign and marketing. The kickstarter was successful and we built boards in the fall for an on-time delivery in December. The boards for sale here are from the initial manufacturing run.
I documented the design on the board on hackaday.io and there is a full set of documentation and demo applications in my git repository. My project partner, Mike Seiler, also wrote some python demo code which can be found in his git repository.

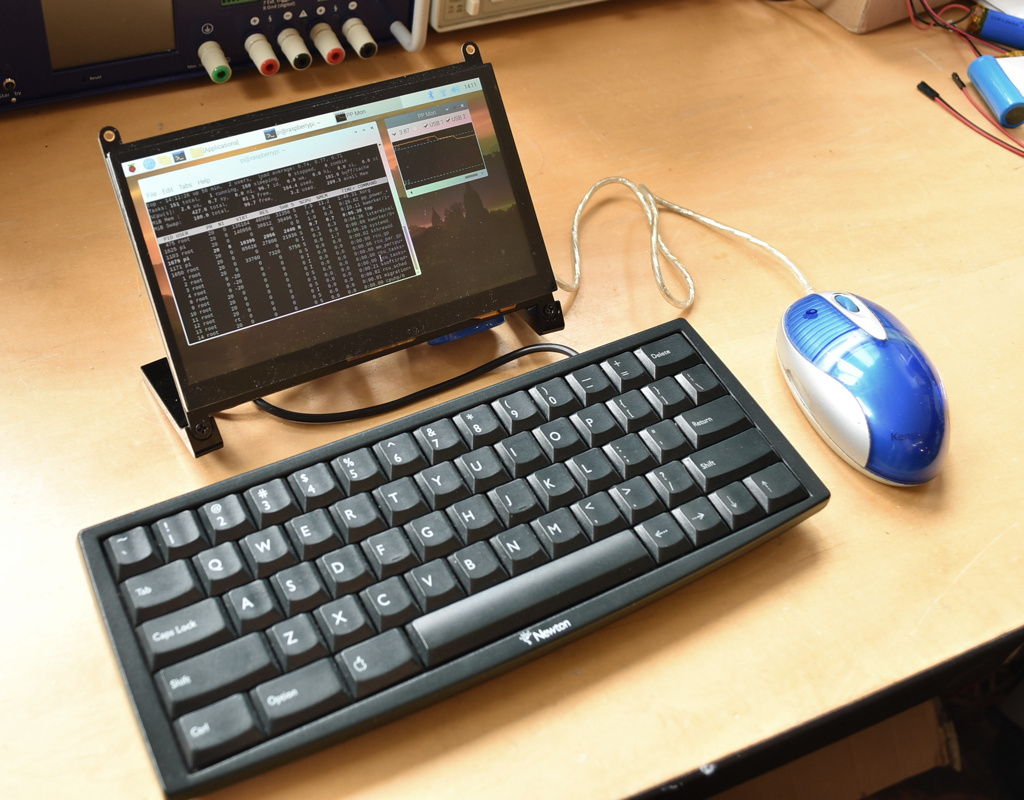

Porta-Pi The USB UPS functionality, along with an inexpensive 1024x600 pixel capacitive touch HDMI monitor, is perfect for making a portable computer using the Pi Zero. See the full details in the github repository.
Special Beaglebone Version
I created a special version of the firmware to allow the Solar Pi Platter to act as a power management and expansion system for the Pocketbeagle. It is documented here. Let me know if you would like the Solar Pi Platter loaded with the special Beaglebone firmware.
