Open-Source CAN-Controlled Power Distribution Module – Smart, DIY-Friendly & Powerful!

Take control of your power system with our Arduino-based, open-source CAN-Controlled Power Distribution Module—perfect for DIYers, makers, and professionals working on automotive, industrial, and automation projects. Key Features:

• ✅ 4 High-Side Outputs (8A per Channel).
• ✅ Current Measurement on Each Channel.
• ✅ 3 Analog Inputs (0-5V) – Ideal for sensors.
• ✅ 2 Digital Inputs – Perfect for switches.
• ✅ CAN Bus Communication – High-speed integration for advanced systems.
• ✅ Arduino-Compatible – Fully programmable for ultimate customization.
• ✅ Open-Source Hardware & Code – Modify, improve, and make it your own!
• ✅ Selectable CAN Termination via pin-header jumper.

Technical Specifications:

• 🔹 Input Voltage: DC 7V - 24V
• 🔹 Channel Current: Up to 8A per output
• 🔹 CAN Bus Baud Rate: Default 500 kbit/s (adjustable in software)
• 🔹 Power consumption: 0.25 W (20mA @ 12VDC)

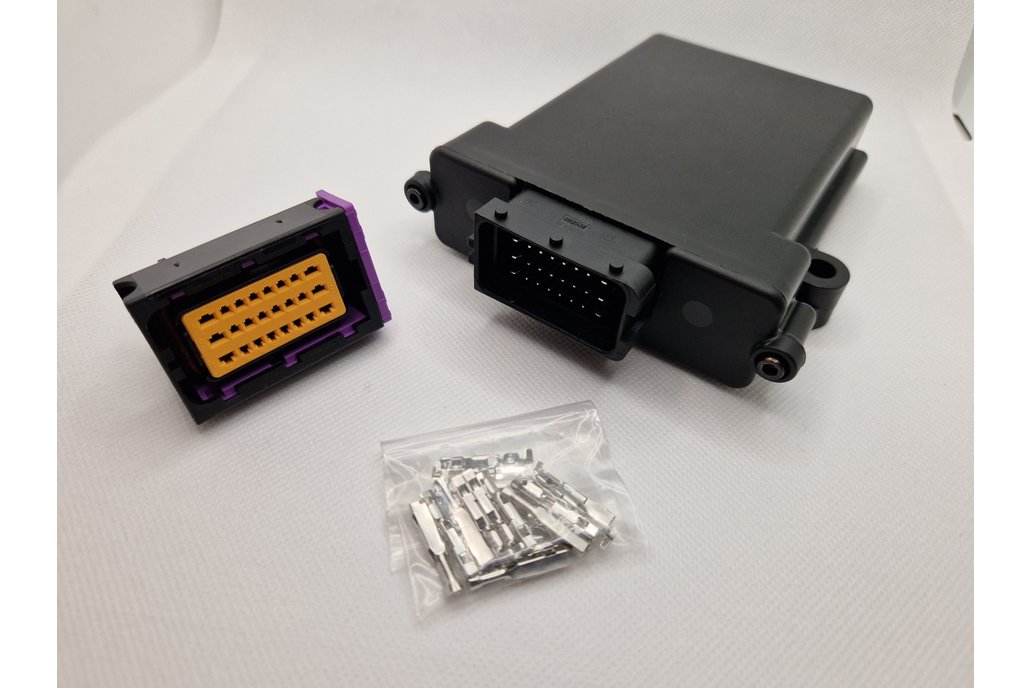

• 🔹 24P FCI Connectors
• 🔹 Enclosure dimension 140x120x35mm
• 🔹 Microcontroller Arduino Nano

Perfect for: Automotive power distribution, industrial automation, robotics, and custom DIY projects!

⚡ Join the open-source revolution! Download the design files, explore the code, and start building today.

📩 Contact us for details or place your order now!
