Model: RM55T-50M-R5 (1Ω-53MΩ range, 0.5Ω steps and up to 0.1% accuracy@Tcal±10℃)Designed by EastwoodLab in China
RM55 the ultra-economical programmable resistor module covers an output range of 1Ω to 53MΩ (as well as open and short outputs), 0.5Ω steps and power rating up to 1.0W. Although it's designed to cost…Read More…
RM55 the ultra-economical programmable resistor module covers an output range of 1Ω to 53MΩ (as well as open and short outputs), 0.5Ω steps and power rating up to 1.0W. Although it's designed to cost down for general applications, it performs well in the 1kΩ-1MΩ output range (conservative accuracy±0.1%@Tcal±10°C)
The communication interface of RM55 inherits the USB-COM port of the QR10 series, "plug-and-play" makes it convenient for users to debug and test; At the same time, the UART serial port is added to facilitate users to integrate this product into their own projects in the form of PCBA modules (for example, attach it to Arduino).
In addition, the optional "User Field Calibration" feature further improves accuracy and reduces user maintenance costs.

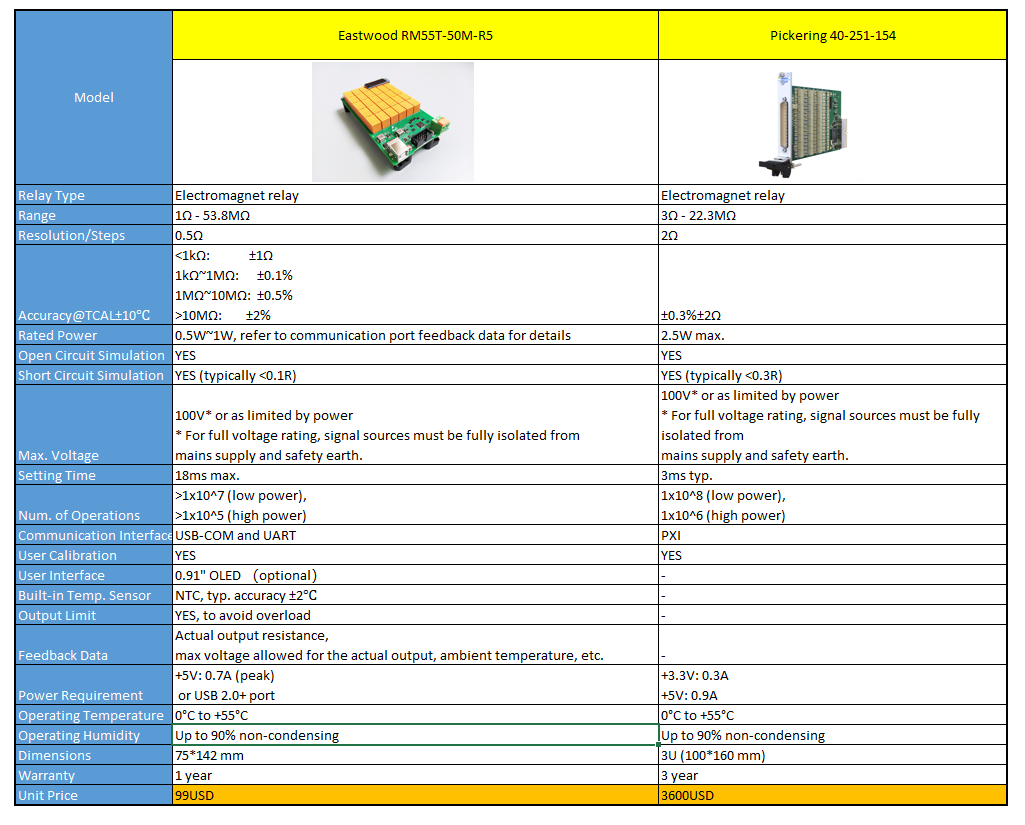

Compare with one of the leading product:
The product for sale is with accessories (USB type-B cable, IDC cable and OLED module) and enabled user calibration.
No country selected, please select your country to see shipping options.
No rates are available for shipping to .
Enter your email address if you'd like to be notified when RM55 Ultra-economical Programmable Resistor Module can be shipped to you:
Thanks! We'll let you know when the seller adds shipping rates for your country.
|Shipping Rate||Tracked||Ships From||First Item||Additional Items|
Shipping basically via HK DHL/FeDex; All goods with 1 year warranty.
