TCXO sx1262 module 868MHz 915MHz sx1262 FCC IC certificate SX1262Designed by DORJI in China
Features: (G)FSK/4(G)FSK/LoRa Modulation 868/915Mhz transceiver Max.22dBm output power -147dBm sensitivity Standard SPI interface Low RX current: 5.8 mA Automatic RF sense and CAD monitor Data Rate:…Read More…

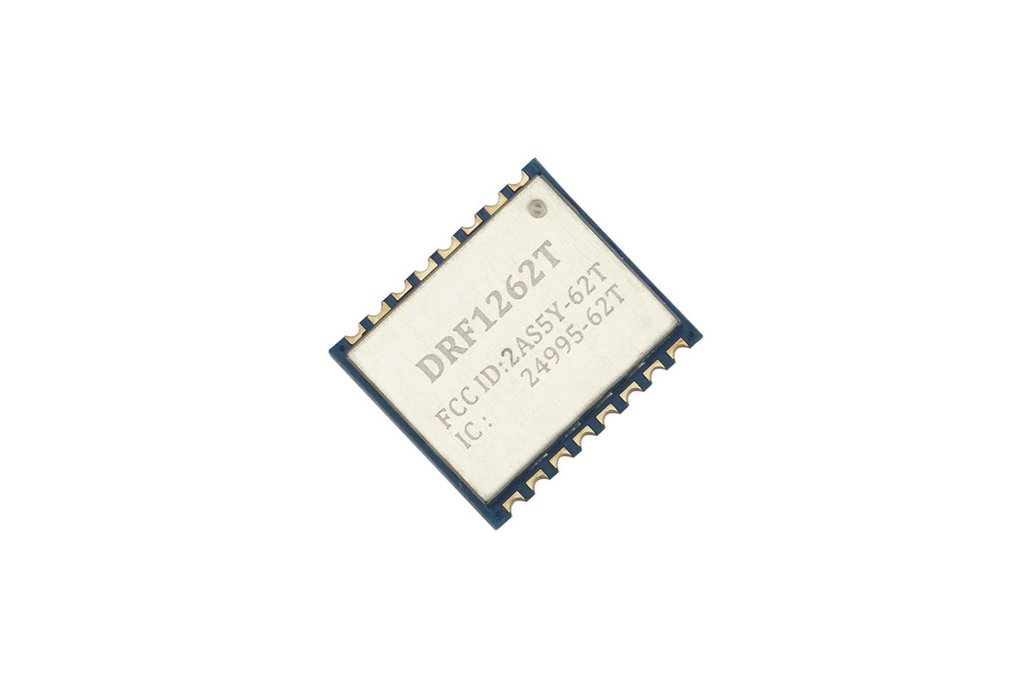

DRF1262T module consists of RFIC SX1262, thin SMD crystal and antenna matching circuit. The antenna port is well matched to standard 50 Ohm impedance. Users don’t need to spend time in RF circuit design and choose suitable antennas for different applications. DRF1262T operates at 1.8~3.3V with extra low standby current which makes it suitable for battery powered-up applications.
DRF1262T adopts ±1ppm high accuracy TCXO which makes it possible to use narrower bandwidth to achieve the high sensitivity up to -147dBm.
Remote Control * Remote AMR * Home Automation * Personal data logger * Wireless sensor network * Remote Keyless entry * Wireless PC peripherals
