2.13 inch E-Ink Display HAT V4 Version, 250x122 Resolution 3.3V/5V Black White Two-Color e-paper Screen Module for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B, Supports Partial Refresh, SPI Interface

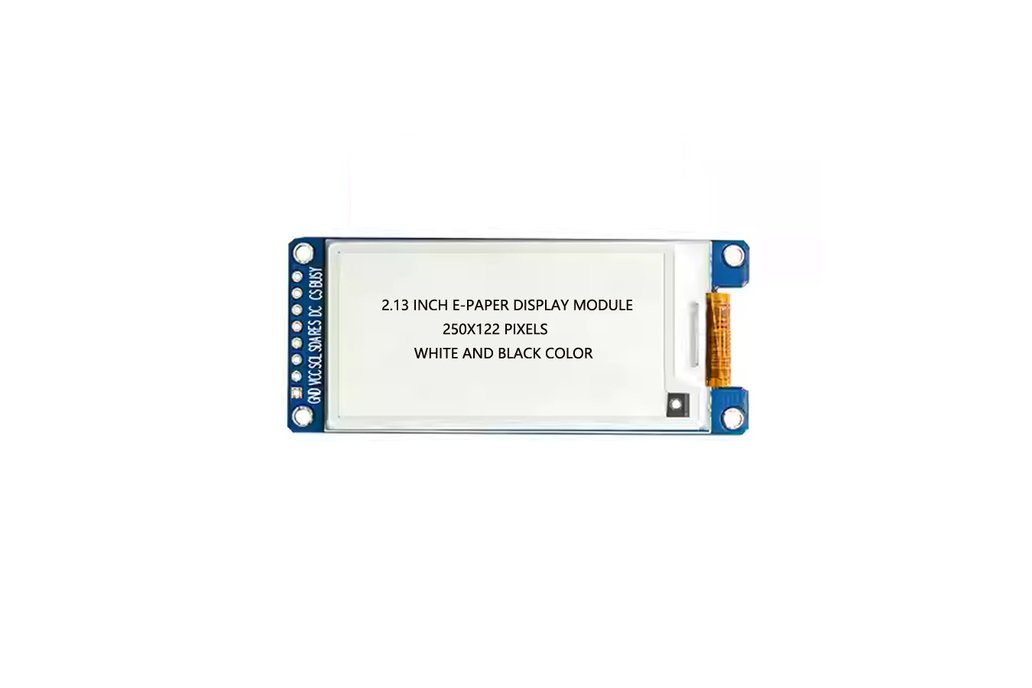

Overview of 2.13 inch Eink display 122x250 This 2.13" E-ink display with PCB is a reflective electrophoretic technology display module onan active matrix TFT substrate. The panel is capable of displaying black, white images depending on the associated lookup table used. The circuitry on the panel includes an integrated gate and source driver, timing controller, oscillator, DC-DC boost circuit, and memory to store the frame buffer and lookup tables, and additional circuitry to control VCOM and BORDER settings.

Parameter of 2.13 inch Eink display 122x250:

• Display Mode : Active Matrix Electroph oretic Display;EPD,B/W
• Display Color : (black/white)
• Display Size:2.13 inch
• DriverlC:SSD1680Z
• Pin No:8P
• Display Resolution: 122(H)×250(V) Pixel
• Panel Size: 30.0(H)×60.2 (V) ×2.35(D) (mm)
• Active Area: 23.7046×48.55 (mm)
• Pixel Pitch: 0.1943×0.1942 (mm)
• Operating voltage:3.3V
• Interface:SPI
• Operating Temperature:0~50 °C
• Storage Temperature：-25~70 °C
• Weight: 3.2±0.5

Features of 2.13 inch Eink display 122x250:

•  High contrast
•  High reflectance
•  Ultra wide viewing angle
•  Ultra low power consumption
•  Pure reflective mode
•  Bi-stable display
•  Antiglare hard-coated front-surface
•  Low current deep sleep mode
•  On chip display RAM
•  Waveform stored in On-chip OTP
•  Serial peripheral interface available
•  On-chip oscillator
•  On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
•  I2C signal master interface to read external temperature sensor
•  Available in COG package

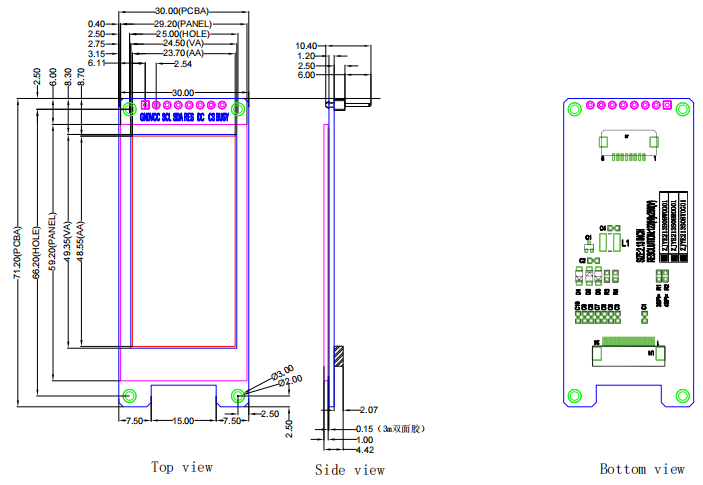

Mechanical Drawing

Pinout details:

Application of 2.13 inch Eink display 122x250:

• Electronic Shelf Label System
• Electronic price tags
• Electronic conference board

Packing Including:1 x2.13 inch eink display 122x250 Black/White
