Product Description：

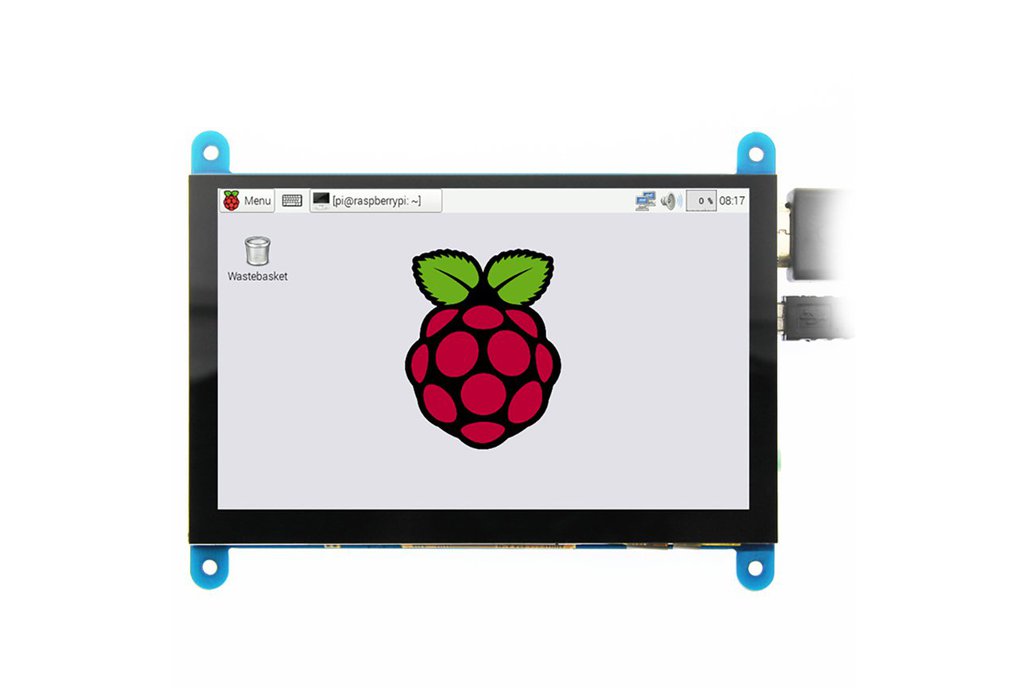

• 5"standard display, 800x480 resolution，maximum HDMI resolution 1920X1080 is supported
• Capacitive touch screen, support 5 point touch maximum
• Built-in OSD menu adjustment function (adjustable Contrast/ Brightness/Saturation, etc.)
• It is compatible with mainstream mini PC such as Raspberry Pi, BB Black, Banana Pi
• It can also be used as a general-purpose HDMI display, connecting computers, TV boxes, Microsoft Xbox360, SONY PS4, Nintendo Switch and so on
• Used as a Raspberry Pi display that supports Raspbian, Ubuntu, Kodi, Win10 IOT, single-touch, free drive
• Work as a PC monitor, support Win7, Win8, Win10 system 5 point touch (XP and older version system: single-point touch), free drive
• Support HDMI audio output
• CE, RoHS certification

Product Parameters

• Size: 5.0 (inch)
• Resolution: 800 × 480 (dots)
• Touch: 5 point capacitive touch
• Audio output: support
• Active Area: 108.00*64.80 (mm)
• Dimensions: 121.11*95.24 (mm)
• Package Size: 15313551 (mm)
• Rough Weight(Package containing): 259 (g)
• Power Dissipation: 0.30A*5V

Hardware Description

• ① Earphone: 3.5mm Audio output interface
• ②&③ Touch: USB connector ( For power supply and touch output, the functions of the both are the same, can just use one of them)
• ④ Display: HDMI interface ( For connecting motherboard and LCD monitor)
• ⑤ Power: Turn on or off display and backlight to save power consumption
• ⑥ Return: Return (Only valid in the OSD Settings menu)
• ⑦ Right/Down: Direction Right/Down （Backlight shortcut key）
• ⑧ Left/Up: Direction Left/Up （Backlight shortcut key）
• ⑨ Menu: Open the OSD / Select key (Only valid in the OSD Settings menu)

How to use as PC monitor

• Connect the computer HDMI output signal to the LCD HDMI interface by using the HDMI cable
• Connect the LCD's USB Touch interface (Either of the two MicroUSB) to the USB port of the device
• If there are several monitors, please unplug other monitor connectors first, and use LCD as the only monitor for testing.
