2.13 inch 250x122 E Paper Panel for Devices Electronic Display 2.13"" Electronic Paper Monitor E Paper Display Fast Rate Monitor, Black and White

Overview of 2.13 inch EPD Display module

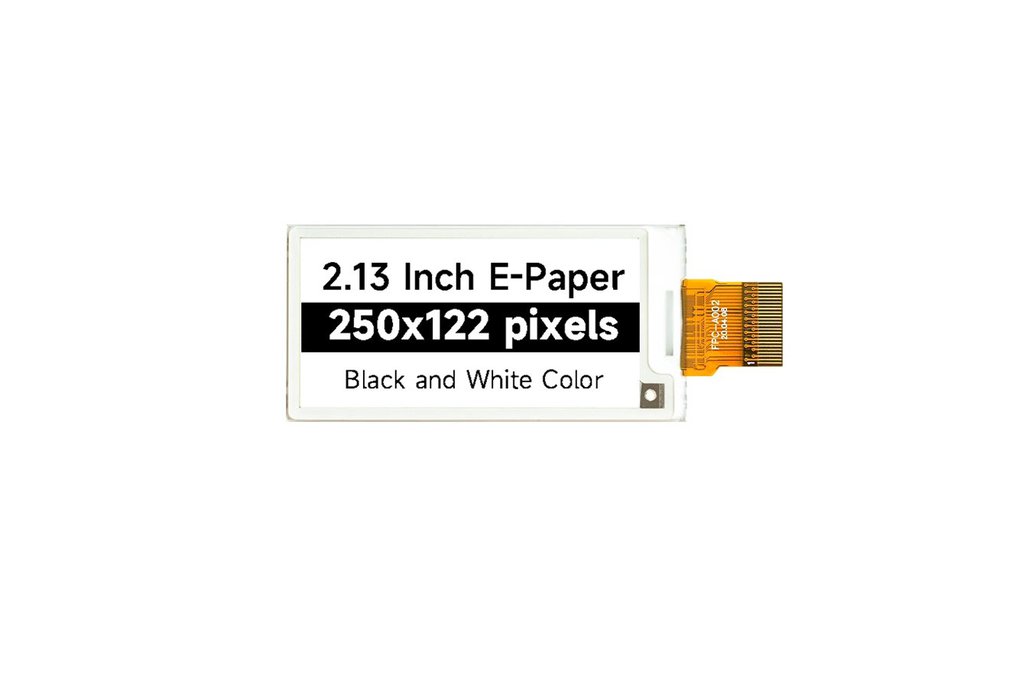

2.13-inch 122x250 e-paper Display Module，black and white color

this 2.13" E-ink display is an Active Matrix Electroph oretic Display (AM EPD), with interface and a reference system design. The display is capable to display images at 1-bit white, black full display capabilities. The 2.13 inch active area contains 250×122 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System

Parameter of 2.13 inch EPD Display module:

• Display Mode : Active Matrix Electroph oretic Display;EPD,B/W
• Display Color : (black/white)
• Display Size:2.13 inch
• DriverlC:SSD1680Z
• Pin No:24P
• Display Resolution: 122(H)×250(V) Pixel
• Panel Size: 29.2(H)×59.2 (V) ×1.0(D) (mm)
• Active Area: 23.7046×48.55 (mm)
• Pixel Pitch: 0.1943×0.1942 (mm)
• Pixel Configuration: Square
• Logic supply voltage:3.0V
• Interface:SPI
• Operating Temperature:0~50 °C
• Storage Temperature：-25~70 °C
• Weight: 3.2±0.5

Features of 2.13 inch EPD Display module:

• 250×122 pixels display
• High contrast High reflectance
• Ultra wide viewing angle Ultra low power consumption
• Pure reflective mode
• Bi-stable display
• Commercial temperature range
• Landscape portrait modes
• Hard-coat antiglare display surface
• Ultra Low current deep sleep mode
• On chip display RAM
• Waveform can stored in On-chip OTP or written by MCU
• Serial peripheral interface available
• On-chip oscillator
• On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
• I2C signal master interface to read external temperature sensor
• Built-in temperature sensor

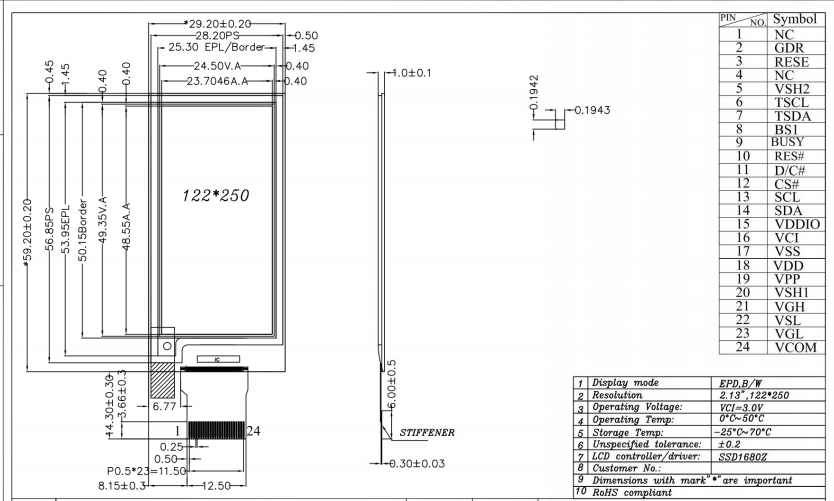

Mechanical Drawing

Application of 2.13 inch EPD Display module:

• Electronic Shelf Label System
• Electronic price tags
• Electronic conference board

Packing details :1x 2.13 inch 122x250 eink display in black/white
