Build yourself your next Eurorack moduleDesigned by Electronic things... and stuff, Ships from France
Updated boards are there! Read my blog for more informations, more pictures. What is it? A stripboard dedicated to Eurorack module format. The most convenient way to build any simple module. Just u...Read More…

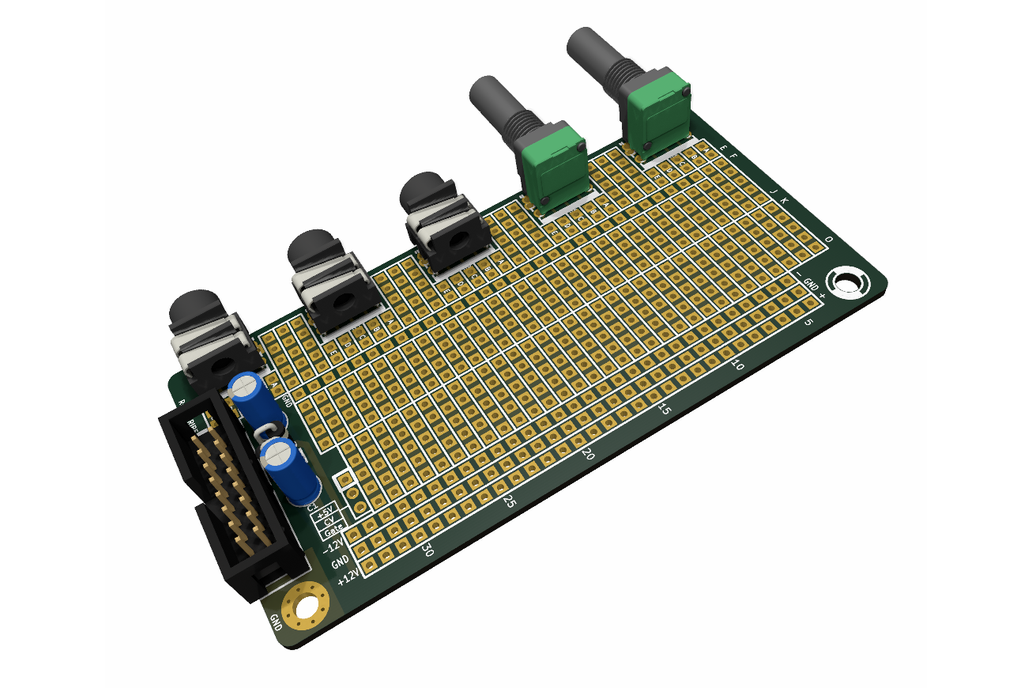

A stripboard dedicated to Eurorack module format.
The most convenient way to build any simple module. Just use it as a standard stripboard PCB.
This stripboard is designed to help in the process of building your own module. Power supply interface is almost completed: 16 pins connector with silkcreened signal marks, filtering capacitors and bead filters or protection diodes.
You can use up to 5 potentiometers or 5 Cliff style Jack connectors. Potentiometers can be any of 9 or 16 mm types, Alpha PKN160 for example.
This is PCB only, no component provided. Use any component you need :) Be creative!
Because I needed a couple of them, to build some simple modules: a mixer, a simple envelope generator, an LFO... :)
It's a good alternative to standard stripboards: it's easier to add potentiometers and jack connectors, easier to implement the power supply interface. And it's already cut to Eurorack dimensions.
The PCB is made in industry quality standard 1.2 mm thick, FR4 material. Plated through holes and green solder mask for easy soldering session.
All the projects I sell are designed for myself. Then, I sell surplus products. I made this stripboard to fit my needs. I'm sure it fits your needs too!
If you're not satisfied with one of my kit or PCB, you can send it back and I will refund you, as long as the PCB or the components has no damage from a begin of assembly: no solder, no cut or bent leg, etc. Before returning a product, you must contact me first.
I also offer supplemental discount if you provide me pictures of finished kits or populated PCBs :)
