YMF276 MegaMod - OPN2 with external 16-bit DAC

Name: YMF276 MegaMod - OPN2 with external 16-bit DAC
SKU: 38943
Price: 59.00 USD
Availability: InStock

YMF276 is an upgraded version of YM2612/YM3438 with an external 16-bit DAC, providing excellent sound quality.

Designed by Denjhang's Retro Hardware in Malaysia

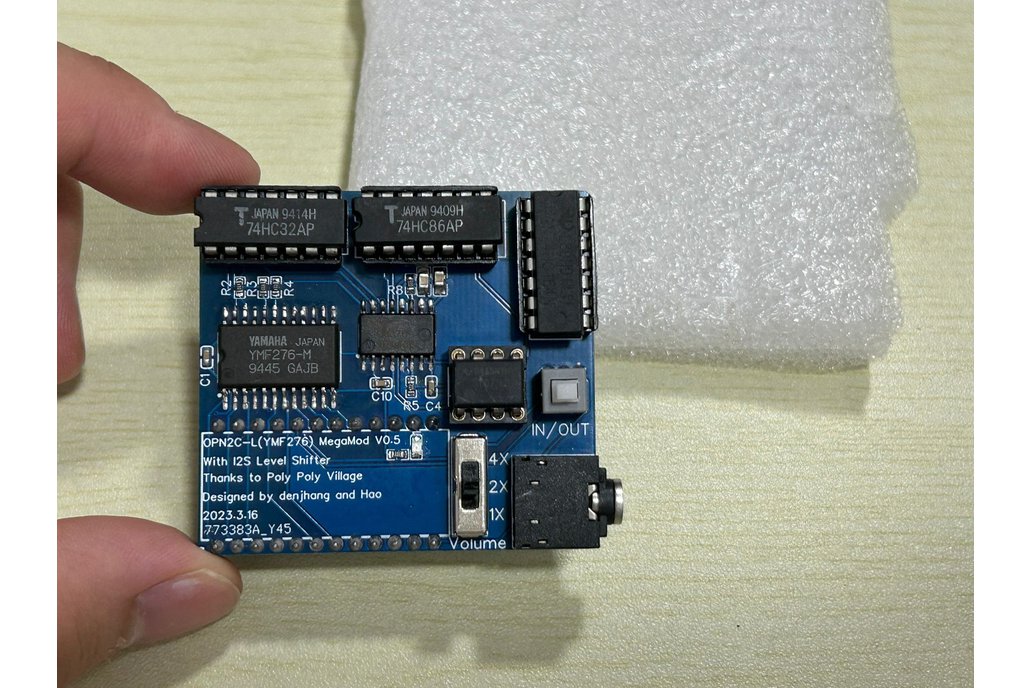

YMF276 MegaMod - OPN2 with external 16-bit DAC 1

YMF276 MegaMod - OPN2 with external 16-bit DAC 2

YMF276 MegaMod - OPN2 with external 16-bit DAC 3




Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

YMF276 is an upgraded version of YM2612/YM3438 with an external 16-bit DAC, providing excellent sound quality.

What is it? The FM type of YMF276 is OPN2C-L, which is an upgraded version of YM2612/YM3438. It adopts CMOS process and allows the use of universal i2s external 16-bit audio DAC, providing excellent …

What is it?

The FM type of YMF276 is OPN2C-L, which is an upgraded version of YM2612/YM3438. It adopts CMOS process and allows the use of universal i2s external 16-bit audio DAC, providing excellent sound quality.

Why did you make it?

I bought hundreds of YMF276s in 2021, so I needed a piece of hardware to test its functionality. The YMF276 MegaMod was the earliest MegaMod I designed in 2021, because it does not require an identification bit, it can be directly plugged into the OPN2 socket, and it can also play Mega Drive/Genesis music with the SN76489.

What makes it special?

The latest version of the design includes a proven i2s audio shifter, which can digitally amplify the volume to achieve lossless volume amplification. The volume of many FM Towns music is much lower than MD/Genesis, and the sound quality is poor when played with YM2612/3438, because OPN2/2C only has a built-in 9-bit DAC and the step noise is obvious at low volume. Using YMF276 does not have this problem at all.
