BedLight is a bedside light kit with STM32 Nucleo developement boardDesigned by dadantech in Slovakia
BedLight is a bedside light kit with STM32 Nucleo developement board. On the bottom it has 4 buttons that also act as feet. So when a corner is of the light is pressed it actuates the button undernea…Read More…
BedLight is a bedside light kit with STM32 Nucleo developement board. On the bottom it has 4 buttons that also act as feet. So when a corner is of the light is pressed it actuates the button underneath. It is powered by 5V from a micro USB connector. Whole case is 3D printed (models can be downloaded here)

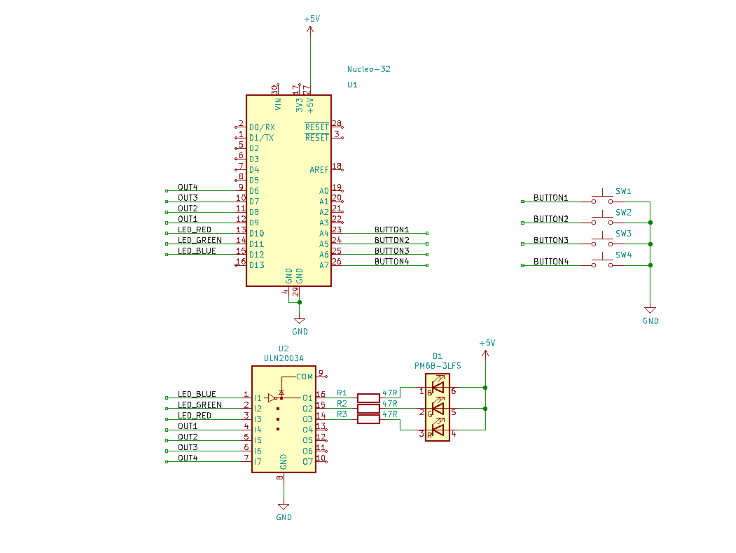

It is as simple as possible - 3 PWM outputs from STM32 are driving a RGB LED over transistor array and a current limiting resistors.
After connecting the BedLight to the computer it will appear as a removable drive. You simply copy/paste the binary file to the drive and it will automatically flash the firmware to the STM32 microcontroller.
This kit is very easy to build and is aimed for beginners.
I created a step-by-step video with all instructions: https://youtu.be/sp5cuA6lrrU
