POGO Pin Adapter for In-Circuit Serial Programming of PIC Microcontrollers using the Microchip Pickit3 / Pickit4.Designed by Pants for Birds in United States of America
This device allows In-Circuit Serial Programming (ICSP) of the PIC line of microcontrollers by Microchip. The device breaks out the 2.54mm pins from a Pickit3 or Pickit4 programmer device into a r...Read More…

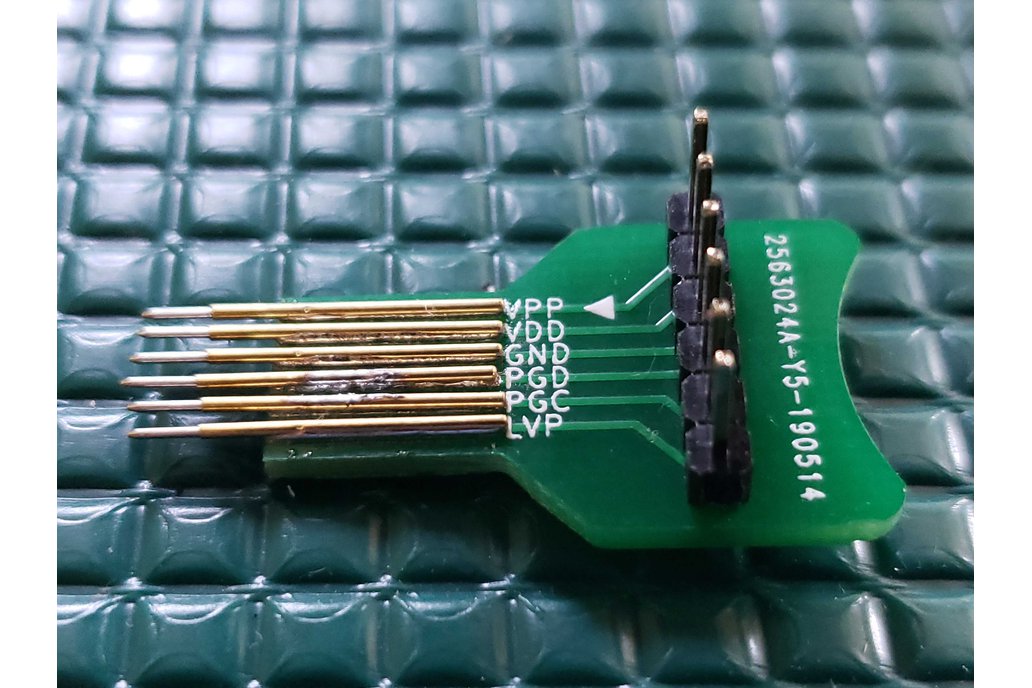

This device allows In-Circuit Serial Programming (ICSP) of the PIC line of microcontrollers by Microchip. The device breaks out the 2.54mm pins from a Pickit3 or Pickit4 programmer device into a row of 6 spring-loaded POGO pins with 1.27mm pin spacing.
Due to its 1.27mm pin spacing, this adapter requires minimal board space for its corresponding ICSP header while remaining easy to use.
Usage instructions and KiCAD ICSP pad footprints are available on the GitHub repository.
NOTE: this adapter ships in a padded envelope with the POGO pins soldered, and the pin header detached. The pin header can be soldered on either side at the user's convenience.
