1A solar powered battery charger w/ LT3652 charger and 5V buck-boost converterDesigned by ceech in Slovenia
This product is no longer available for sale. The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.
Sadly, we found out that this seller passed away in February 2020. Our condolences to his family and friends.
This board is a 1A lithium cell charging board with a 5V output. The board comes with a connector for a LiPo battery and a connector for the solar cell input. Charger is based on LT3652 solar charger…Read More…

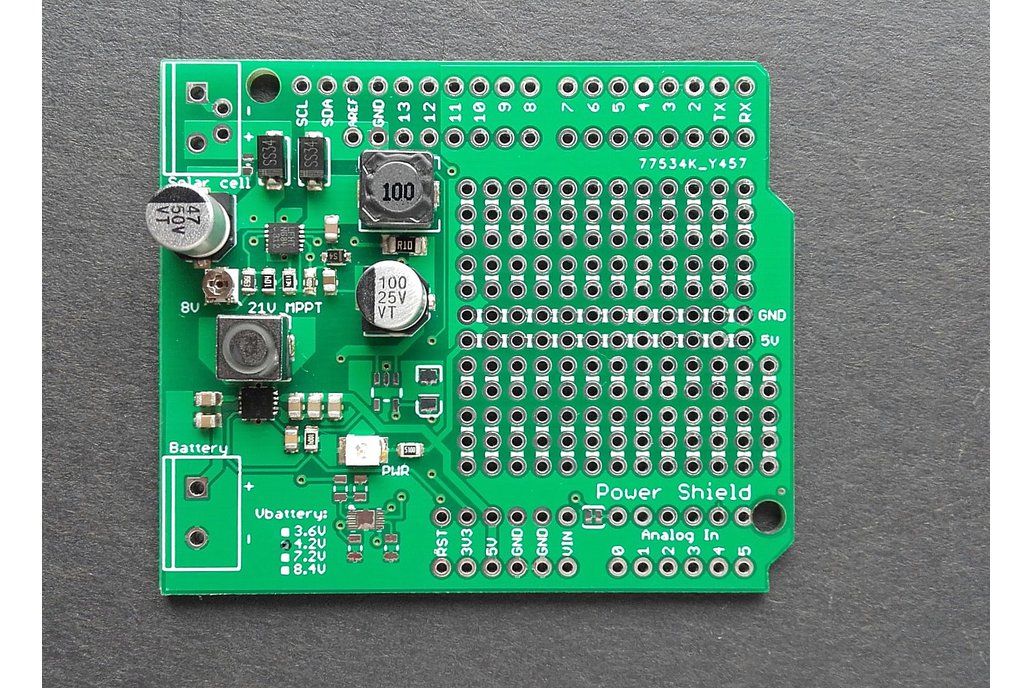

This board is a 1A lithium cell charging board with a 5V output. The board comes with a connector for a LiPo battery and a connector for the solar cell input.
Charger is based on LT3652 solar charger IC and allows you to charge lithium batteries (Li-Po, Li-ion, LiFePO4) at a rate of 1000mA (2A max).
Programmable Charge Rate (Set at 1A)
Wide Input Voltage Range: 8V to 32V (40V Abs Max)
Input Supply Voltage Regulation Loop for Peak Power Tracking in (MPPT) Solar cell (User set from 8V to 21V)
Programmable Float Voltage Up to 14.4V for Li-Ion/Polymer, LiFePO4 and SLA Chemistries (Set at 4.2V, for other voltages send us a message).
The buck-boost converter is based on the TPS63060 from TI and has 5V output.
There is also nice prototyping area available with power and ground lines running through the centre. Note: When you are finished charging your battery, it is recommended that you remove the battery from the shield, since the charge will slowly drain without proper management.
