What is it?

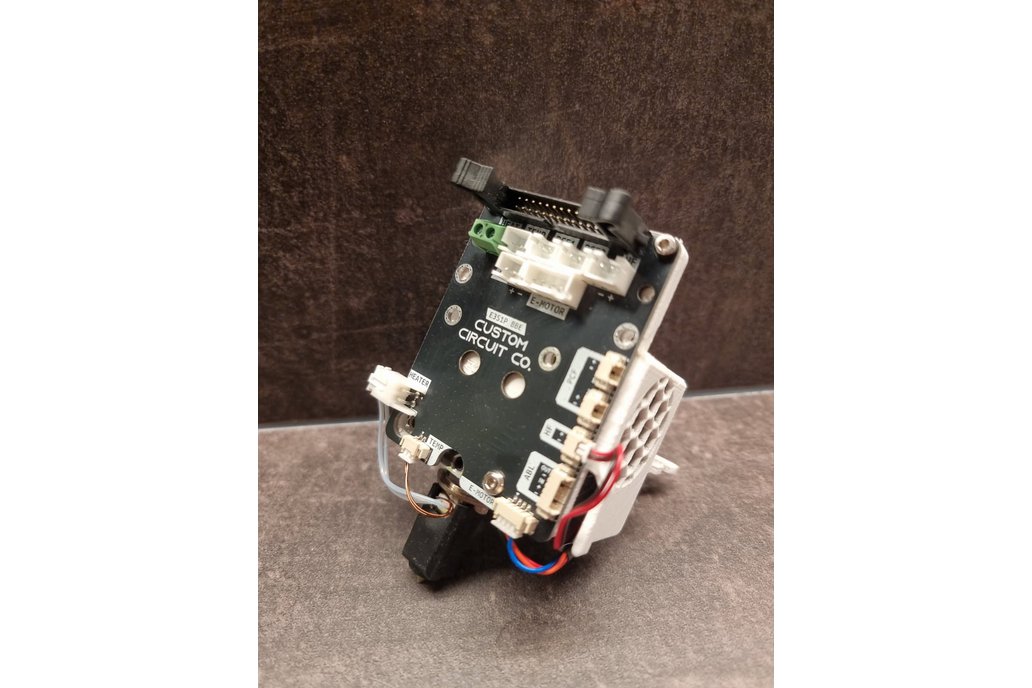

The E3S1P Breakout Board is a toolhead adapter board for the Creality Ender 3 S1 Pro. It breaks out the stock ribbon cable into individual JST XH and Picoblade connectors, making it much easier to install custom extruders, hotends, fans, and sensors — perfect for modders looking to clean up or customize their wiring.

> ⚠️ Note: I do not personally own an Ender 3 S1 Pro, so documentation and support are limited. That’s why I’m offering these boards at a low price — they’re intended for advanced users who are comfortable figuring out installation on their own without any manual. > 🔄 Important: Creality has reportedly changed connector polarity in different batches — please double-check before powering anything!

Why did you make it?

When a friend’s original breakout board failed, I decided to help by designing a more rugged and flexible version. Inspired by NathanBuildsRobots' Modder Board, this version maintains the same core functionality, but features a new layout that hopefully improves wire routing and durability. It’s a simple, robust solution for anyone upgrading the toolhead on an Ender 3 S1 Pro.

Connectors

• 24-pin connector: Connection from mainboard
• Heating cartridge (HEAT / HEATER)
  • Screw terminal
  • JST XH
• Thermistor (TEMP)
  • Picoblade
  • JST XH
• Print cooling fan 1 (PCF1)
  • Picoblade
  • JST XH
• Print cooling fan 2 (PCF2)
  • Picoblade
  • JST XH
• 5V supply
  • JST XH
• Extruder motor (E-MOTOR)
  • Picoblade
  • JST XH
• CR-Touch / Auto bed leveling (ABL)
  • Picoblade

What's included?

• 1x E3S1P Breakout Board V1.1 (see pictures 3 and 4 for exactly what you’ll receive)

What you'll need

• A 3D-printed backplate, available for free on Printables
• Basic wiring knowledge and access to a multimeter (recommended for polarity checking)
• Tools for disassembling the extruder

Disclaimer

The following information is provided ”as is” and without warranty of any kind, express or implied. I, will not be liable for any damages of any kind arising from the installation or use of this upgrade product for your Creality printer, including, but not limited to, direct, indirect, incidental, punitive, and consequential damages. The user assumes all responsibility and risk for the installation and use of this product.
