AI Kit: M.2 HAT+, Hailo AI Module, 16Mm Header, Spacers, Screws - Bluetooth Connectivity - Single Board Computer

Contains a neural network inference accelerator capable of 13 tera-operations per second (TOPS) Fully integrated into Raspberry Pi’s camera software stack Thermal pad pre-fitted between module and HAT+ spreads heat across components, improving performance Conforms to Raspberry Pi HAT+ specification Supplied with 16mm stacking header, spacers, and screws to enable fitting on Raspberry Pi 5 with Raspberry Pi Active Cooler in place

Product Description Raspberry Pi M.2 HAT+ Connect M.2 peripherals such as NVMe drives and AI accelerators to Raspberry Pi 5’s PCIe 2.0 interface

Raspberry Pi M.2 HAT+ The Raspberry Pi M.2 HAT+ enables you to connect M.2 peripherals such as NVMe drives and AI accelerators to Raspberry Pi 5’s PCIe 2.0 interface, supporting fast (up to 500 MB/s) data transfer to and from NVMe drives and other PCIe accessories.

Raspberry Pi 5’s single-lane PCI Express 2.0 interface is exposed on a 16-pin, 0.5mm- pitch FPC connector; the M.2 HAT+ M Key is a mechanical adapter board that converts between this connector and a subset of the M.2 standard. It supports devices that have the M.2 M key edge connector, in the 2230 and 2242 form factors. It is capable of supplying up to 3A to connected M.2 devices.

Raspberry Pi AI Kit The Raspberry Pi AI Kit bundles the Raspberry Pi M.2 HAT+ with a Hailo AI acceleration module for use with Raspberry Pi 5. It provides an accessible, cost-effective, and power- efficient way to integrate high-performance AI.

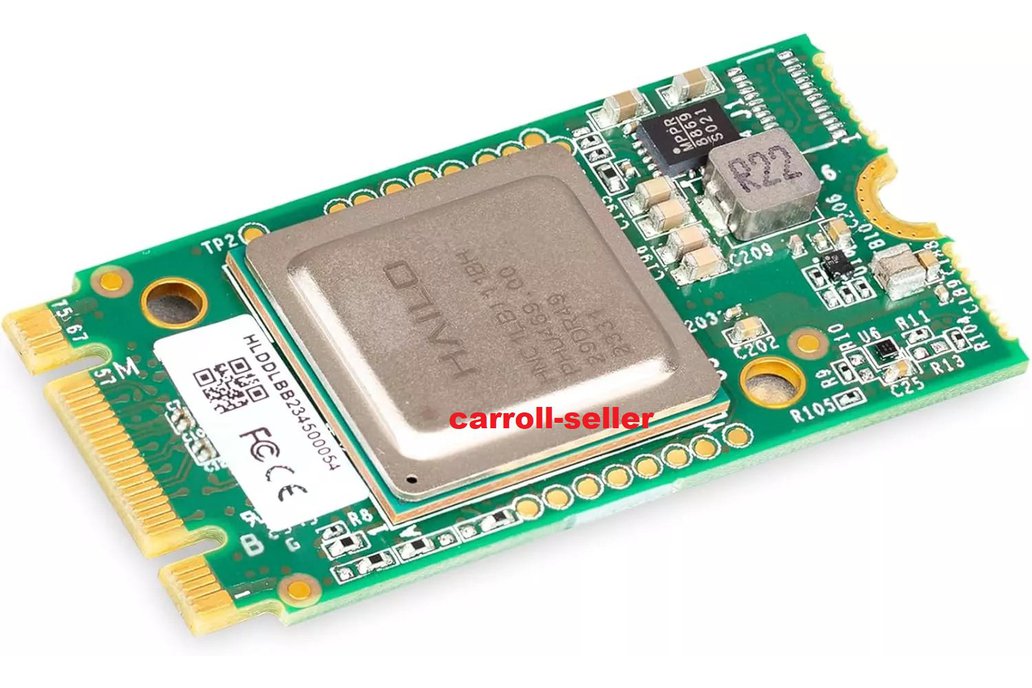

The AI module is a 13 tera-operations per second (TOPS) neural network inference accelerator built around the Hailo-8L chip. The module uses the M.2 2242 form factor, and comes pre-installed in the M.2 HAT+, to which it connects through an M key edge connector. The M.2 HAT+ communicates between the AI module’s M.2 interface and the Raspberry Pi 5’s PCIe 2.0 interface.

Raspberry Pi AI Kit The AI module is a 13 tera-operations per second (TOPS) neural network inference accelerator built around the Hailo-8L chip.

Item Specification

Item model number SC1438 Operating System OS (Debian-based Linux distribution) Series AI Kit RAM LPDDR4 Item Weight 1.44 ounces Number of Processors 1 Connectivity Technology Ethernet Model Name AI Kit Wireless Type Bluetooth
