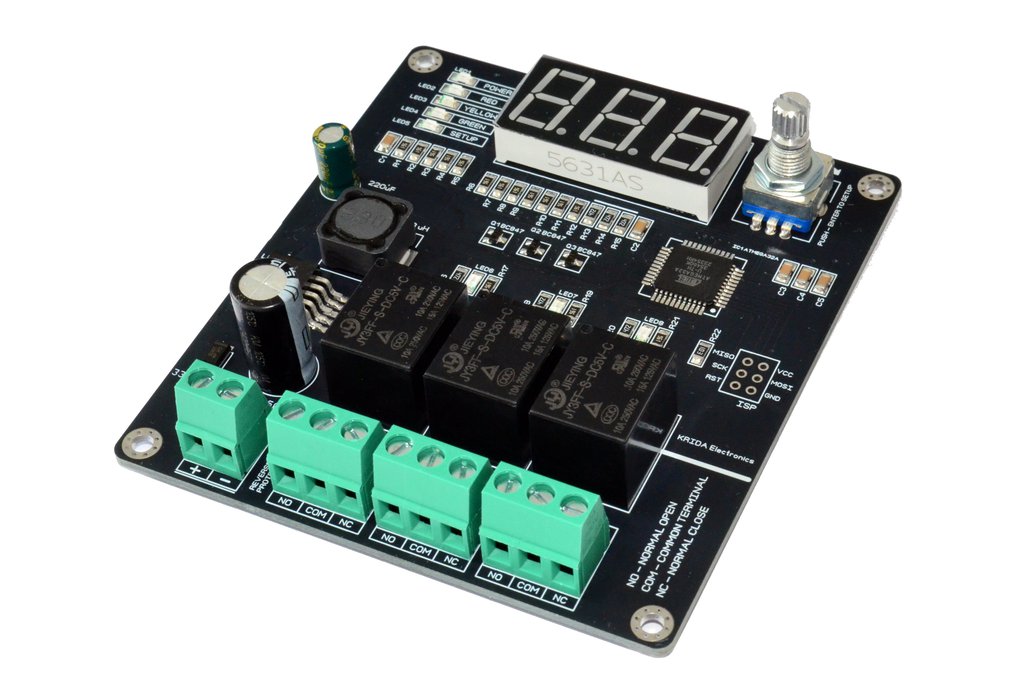

3 Channel Street Light Controller Sequencer Board +7...35VDC power supply

Based Electromagnetic Relays 10A per channel

The board requires a power supply within the range of 7V DC to 35V DC. It has the capability to control both AC and DC powered lights through its built-in relays. These relays are designed to switch voltages in the range of 1V to 100V DC and 1V to 240V AC. If you want to power DC bulbs with the input voltages, you need to wire them as seen in the images gallery.

Description:

Elevate your light control with our versatile Light Controller featuring EMR (Electromagnetic Relays) for seamless operation with both DC and AC loads. This advanced controller offers efficient power management and a wide range of customizable modes, making it suitable for various applications.

Key Features:

• Flexible power supply: Operates with DC voltage in the range of 7VDC to 35VDC, making it adaptable to different setups.
• EMR relays: Equipped with electromagnetic relays for precise control of both DC and AC loads.

Product Features:

• User-friendly mode selection: Easy mode selection via a pushbutton control (encoder).
• Extensive mode options: Choose from a selection of 37+ modes to suit your specific needs.
• Mode memory: Remembers the last selected mode for added convenience when turning the device on and off.
• Independent control: Digital control is independent for RED, YELLOW, and GREEN lights, ensuring realistic operation.
• Customizable durations: User-selectable durations ranging from 0 seconds to 999 seconds, depending on the mode.
• DC relay operation: DC relays can switch between 0VDC to 100VDC.
• AC relay operation: AC relays can switch between 0VAC to 240VAC.
• Input voltage: Accepts DC input voltage in the range of 7V to 35V.
• High relay switching capacity: Each relay supports a maximum operation power of 1100W @ 110VAC and 2400W @ 240VAC.
• Efficient power management: Draws less than 1W from the logic side, ensuring energy efficiency.
• Independent relay output channels: Provides separate relay output channels for operating LEDs, incandescent lamps, or other DC lamps.
• Onboard LEDs: Display current output states, simplifying programming and setup.
• Compatibility: Works seamlessly with all types of lights, bulbs, DC LED strips, and LEDs.
• Three seven-segment displays: Simplify programming tasks.

Device Specification:

• PCB board dimensions: 90mm x 100mm, colored in Yellow.
• PCB Board Material: 1.6 mm FR-4, with solder mask & silk screen.
• Device power supply voltage: 7VDC to 35VDC.
• Delay Range: 0–999 seconds for each color (RED, YELLOW, and GREEN), mode-dependent.
• Output Connectors: Equipped with 14-26AWG, 250VAC @ 16A screw terminals.
• Unit Weight: Approximately 120 grams.

Experience ultimate control and versatility in light management with our Light Controller featuring EMR Relays. With seamless operation of both DC and AC loads, customizable modes, and efficient power management, this controller is the ideal solution for a wide range of applications. Upgrade your management system today!

User manual - https://drive.google.com/file/d/1J-CtArb0DFOk4qyDTeYnnXB6rAytvsSb/view?usp=sharing
