IoTsmart RP2350A (V-HOST / Horisontal mounting)

Name: IoTsmart RP2350A (V-HOST / Horisontal mounting)
SKU: 40403
Price: 11.00 USD
Availability: InStock

IoTsmart RP2350A - Advanced M33/RISC-V controller with 520KB SRAM for HORIZONTAL mounting. 4MB Flash, EEPROM, I²C, Qwiic

Designed by makethingshappy in Israel

IoTsmart RP2350A (V-HOST / Horisontal mounting) 1

IoTsmart RP2350A (V-HOST / Horisontal mounting) 2

IoTsmart RP2350A (V-HOST / Horisontal mounting) 3

IoTsmart RP2350A (V-HOST / Horisontal mounting) 4

IoTsmart RP2350A (V-HOST / Horisontal mounting) 5

IoTsmart RP2350A (V-HOST / Horisontal mounting) 6

IoTsmart RP2350A (V-HOST / Horisontal mounting) 7

IoTsmart RP2350A (V-HOST / Horisontal mounting) 8

IoTsmart RP2350A (V-HOST / Horisontal mounting) 9

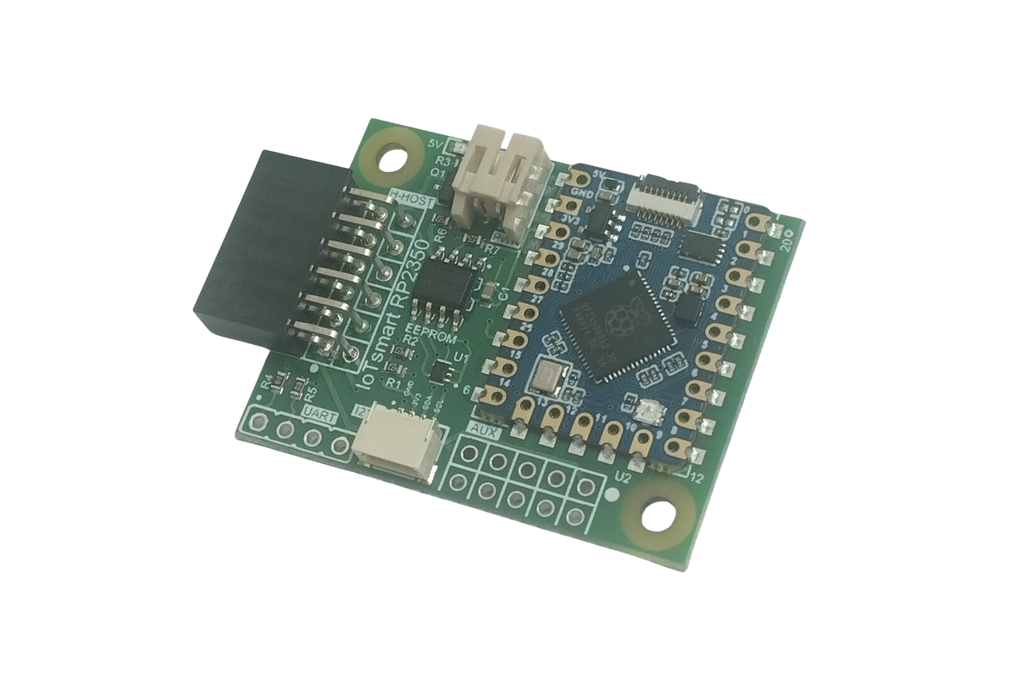

2025-10-26T22:01:21.570Z-01 - IoTsmart RP2350 3D view.png

2025-10-26T22:01:21.570Z-02 - IoTsmart RP2350 top view.png

2025-10-26T22:01:21.570Z-04 - IoTsmart RP2350 pinout.png

2025-10-26T22:01:21.570Z-03 - IoTsmart RP2350 bottom view.png

2025-10-26T22:01:21.570Z-05 - IoTsmart RP2350 and IoTextra Input.png

2025-10-26T22:01:21.570Z-08 - IoTsmart RP2350 and IoTextra SSR Small.png

2025-10-26T22:01:21.570Z-10 - IoTsmart RP2350 and IoTextra Octal2.png

2025-10-26T22:01:21.570Z-13 - IoTextra Analog and IoTsmart RP2350.png

2025-10-26T22:01:21.570Z-18 - IoTsmart RP2350 and Tiny Adaptor Board.png

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Open Source PCB'S and software for IoT, IIoT and Home Automation

IoTsmart RP2350A - Advanced M33/RISC-V controller with 520KB SRAM for HORIZONTAL mounting. 4MB Flash, EEPROM, I²C, Qwiic

The IoTsmart RP2350A module is a high-performance controller platform built around the advanced Raspberry Pi RP2350A microcontroller. It features a unique dual-core, dual-architecture design, combini…

Key Technical Features

Microcontroller: Raspberry Pi RP2350A (Dual-Architecture MCU).
Cores: Dual Arm Cortex-M33 + Dual Hazard3 RISC-V processors.
Processor Speed: Flexible clocking up to 150 MHz.
Memory: 520 KB SRAM and 4 MB onboard Flash.
Architecture: Provides maximum flexibility, high performance, and power efficiency for demanding workflows.
Integration: Dedicated 12-pin HOST connector for direct attachment to IoTextra mezzanines (power, I²C, 8 GPIOs).
Expansion: Qwiic® I²C connector for easy integration of sensors and peripherals.
Data Storage: Onboard EEPROM (8/16 Kbit) accessible via I²C.
Form Factor (V-HOST): Features a Vertical HOST connector (V-HOST), designed for Horizontal Mounting into IoTextra series mezzanines.

Software & Compatibility

IoTsmart RP2350A is fully compatible with popular development and automation frameworks.

Platform	Link
IoTflow	IoTflow (GitHub)
Node-RED	Node-RED (Official Site)
Blynk	Blynk (Official Site)
Development Environments:	Raspberry Pi Pico SDK (C/C++), Arduino RP2040 Core,
	MicroPython (optimized builds), and PlatformIO

Applications and Mezzanine Compatibility

The IoTsmart RP2350A module is the ideal core for complex, high-performance automation and is compatible with our IoTextra industrial module series, including: IoTextra Input, IoTextra Relay2, IoTextra SSR Small, IoTextra Octal2, IoTextra Analog, and IoTextra Combo.

Documentation & Resources

All technical details and code examples are available in our public repository.

Datasheet - Full technical specifications, electrical parameters, schematics (file is attached to the listing)
GitHub Repository - Schematics, code examples, flashing guides, and supplementary documentation.
Make Things Happy Website
SKU - Product Stock Keeping Unit. 020102102002
