STD IoTbase NANO: The Standard Solution for Reliable IoT with Display Port and Wide Voltage Input

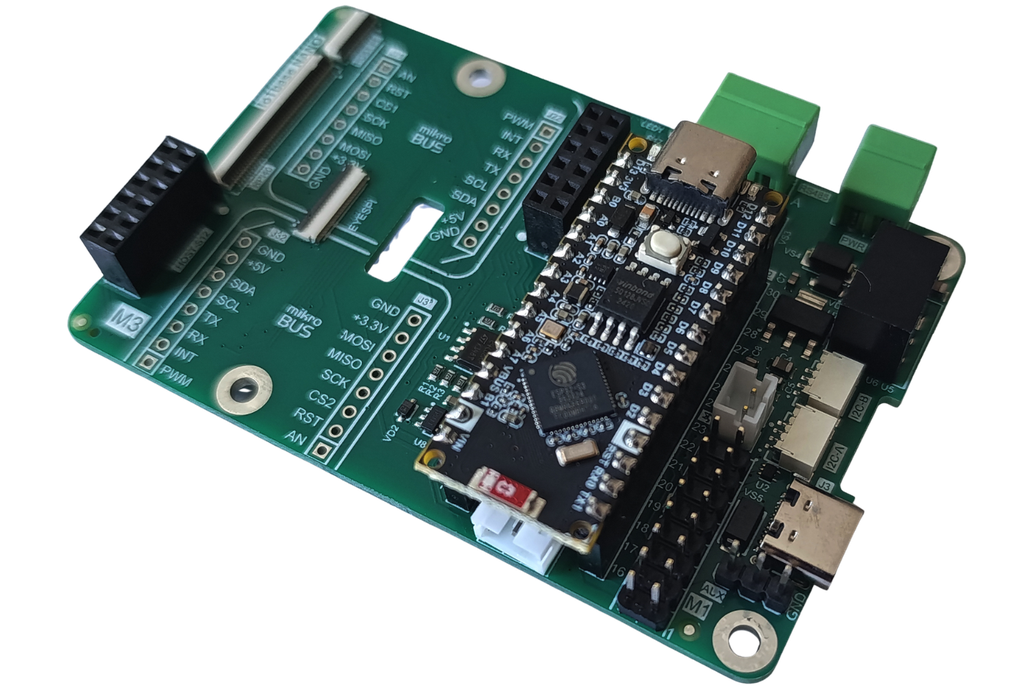

The STD IoTbase NANO carrier module (SKU 020211306021) is a universal platform designed for quick and seamless integration of microcontroller modules in the Arduino Nano form factor, as well as extending their functionality using IoTextra series mezzanines and mikroBUS™ modules. This is an Open Source Design solution, perfectly suited for modular design of small series of IoT, IIoT devices, and Smart Home systems, as well as for rapid prototyping.

Key Distinction (STD Version)

The STD version is standard and is designed for stationary and industrial applications that require reliable power supply and user interface support: - Power: Includes a built-in 5W (1A) DC-DC converter, which allows supplying an external non-isolated voltage in a wide range of 9-36VDC (via the terminal block). - Display Support: Includes the EYESPI FFC connector for displays. - Industrial Peripherals: RS-485 and 1-Wire interfaces are not installed in this configuration. - Additionally: Can also be powered via USB Type-C (5VDC).

Main Onboard Features

• NANO Slot: P1 and P2 connectors for installing compatible Arduino Nano format modules (3.3V logic), including Arduino Nano 33 IoT, Arduino Nano 33 BLE, Arduino Nano RP2040 Connect, Arduino Nano ESP32, as well as STM32 Nucleo-32 and Waveshare ESP32-S3-Nano modules.
• Display Connector (Adafruit EYESPI): Features an 18-pin FFC connector for easy integration of compatible displays.
• Mezzanine Support: HOST connectors for installing IoTextra series mezzanines.
• mikroBUS™ Support: M1 connector and auxiliary M2/M3 slots for integrating the extensive mikroBUS™ sensor and peripheral ecosystem.
• I²C Communications: Two Qwiic/STEMMA QT connectors for easy connection of external sensors and peripherals via the I²C bus.
• EEPROM Memory: Built-in memory (8 Kbit) for reliable storage of configuration and user data.
• Form Factor: Matches the popular Raspberry Pi B+ board size (85 * 56 mm).

Software Ecosystem Support

Thanks to the use of Arduino NANO form factor modules, the IoTbase NANO board is widely compatible with popular tools and ecosystems: - Native Programming: Full support for Arduino IDE, PlatformIO, and MicroPython (for compatible modules). - Visual Programming: Enables rapid integration with Node-RED and Blynk platforms (depending on the SOM module installed in the NANO slot). - IoTflow Integration: Deeply integrated into the IoTflow software platform (for creating Node-RED nodes and their integration). - Documentation: Open Source Design and code examples for quick starting.

Technical Specifications (Tech Specs)

Important: Other Versions

This (STD) version is one of two available on Tindie. A full selection of options, including versions with USB power or powerful DC converters with industrial RS-485/1-Wire interfaces, can be ordered on our website: www.makethingshappy.io
