170 Point Proto PCB

Name: 170 Point Proto PCB
SKU: 23580
Price: 1.99 USD
Availability: InStock

Prototyping PCB that matches the layout of a 170 point breadboard.

Designed by Bent Sprocket Tech in United States of America



Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Join us as we take treks into DIY tech, where learning STEM is fun and engaging. Discover a world of projects ranging from robotics and drones to creative arts and crafts.

Prototyping PCB that matches the layout of a 170 point breadboard.

This a PCB that gives you a way to put your project into a more permanent form. The connection points are exactly as they are on a 170 point "tiny" sized breadboard. No guesswork. You simple trans…

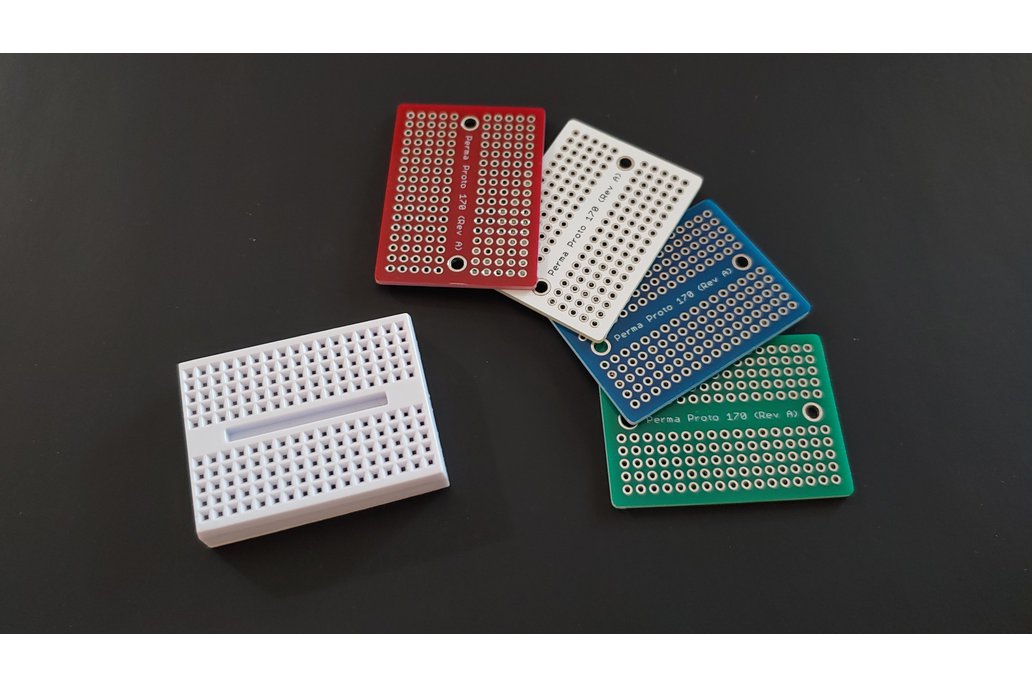

This a PCB that gives you a way to put your project into a more permanent form. The connection points are exactly as they are on a 170 point "tiny" sized breadboard. No guesswork. You simple transfer your project exactly as it is from the breadboard to the PCB, hole for hole.

I've seen variations of this board all over, but I decided to make a version with #4 sized mounting holes. 4-40 sized screws are very common and I've found this change to be quite useful. The traces on the back side are also easily cut with an Exacto blade providing even more flexibility of use than the standard 170 point breadboard.
