Homekit And MQTT 8CH 10A WiFi Relay Module Inching Switch Self-locking Entry Access Gate Control DC 5V 12V 7V-28VDesigned by athom smart store in China
8CH Homekit and MQTT 10A DC 5V DC 7-28V Inching/Self-locking/Interlock Relay Switch Open Sources Homekit and MQTT firmware, After installation, you can control the device with both Apple Home App …Read More…
8CH Homekit and MQTT 10A DC 5V DC 7-28V Inching/Self-locking/Interlock Relay Switch Open Sources Homekit and MQTT firmware, After installation, you can control the device with both Apple Home App and MQTT protocal.
Specification Operating voltage: 5V/7-30V
relay on/off status respectively
Supports to control different voltage ranges
Board consumption: <1W
Standby current: 80mA
Max input current: 10A
Max Wattage: 2200W
Relay lifespan: ≥one million times
100M electrical insulation resistance
Electric shock voltage: 1000V
Relay maximum pull time: 15ms
Relay maximum release time: 5ms
Working mode: inching / self-locking
Wireless Standard: 2.4GHz, 802.11 b/g/n
Application: access control, turn on PC, garage door, etc.
Computer application: Remote control computer boot
Operating temperature: -40 degrees to +70 degrees
Operating Humidity 40%-80% RH
WiFi Settings Power on the device, then use your phone or computer search the WiFi, until find the name: Homekit-xxxxx, then connect. Wait several seconds until web pop up.
You can set user name and password for your device and choose DHCP or Static IP
If you want change default settings of other parameters, Please go set and save others parameters first then set and save WiFi setting.
If you set and save WiFi before setting other parameters, then the device will connect you router directly and the connection will lost. then you need to open your router find the IP address of the devices then use IP address to visit the device
MQTT Settings Set your Username and Password of your MQTT . Then you can control the device not only with Homekit but also by MQTT
Advanced Control Setttings In this page, you can set :
Power On State
Switch Mode (Self-locking/Interlock/Inching etc)
Switch type etc.
Complete Settings After setting features, Save it. The device will automatically connect your router.
Then open your Home App add new device until success. ( The code is : 12345678 )
Or go to you MQTT broker complete the settings.
To restart the board just press the button on the board

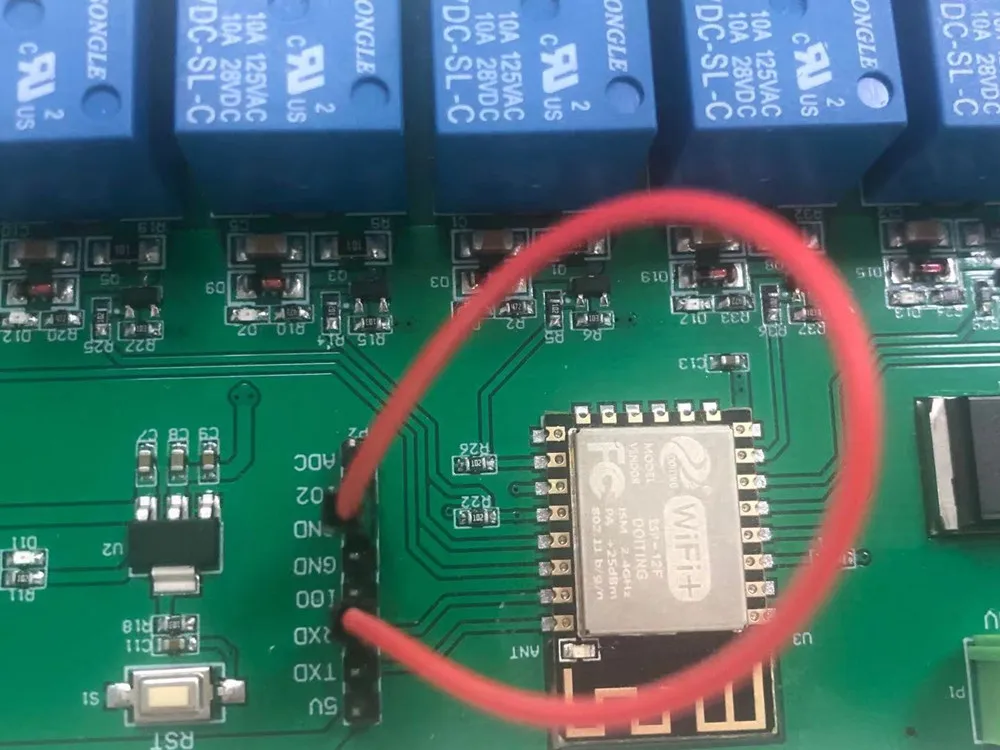

To reset the board, Please use jump wire connect GND to TX for more than 6s and disconnect it. The board will be reset and you need to reinstall it again.
