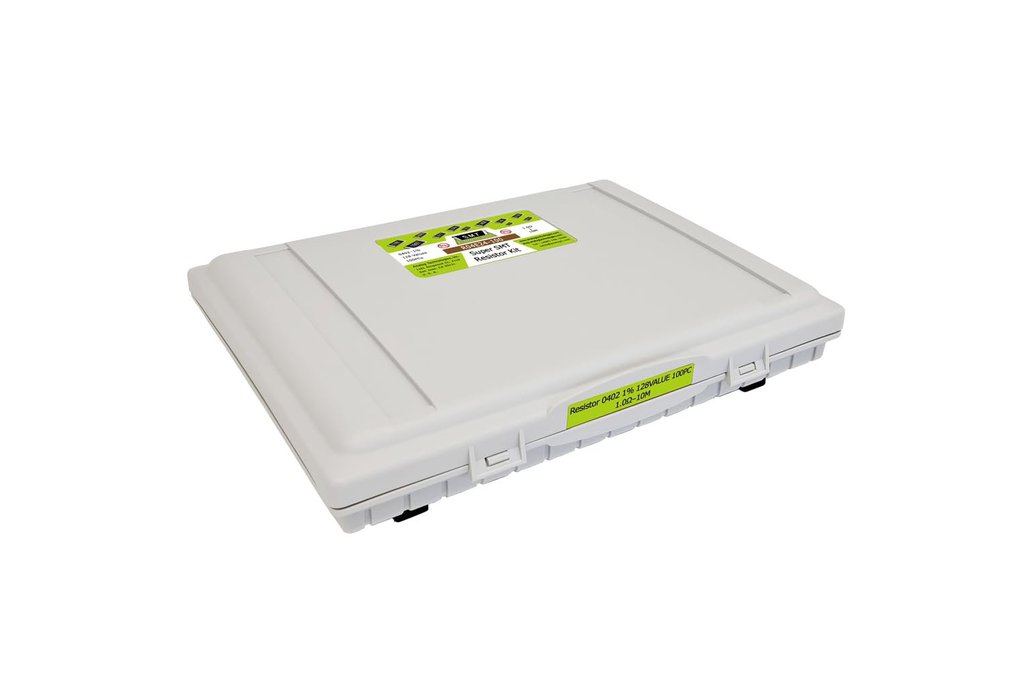

Overview The R04E24-100 is a high-quality 0402 SMD resistor assortment kit featuring 128 precision 1% resistor values, each with 100 pieces for a total of 12,800 resistors. It comes in Analog Technologies’ durable Super Enclosure™, a fully labeled 128-bin storage box with hinged lids for convenient access during prototyping, debugging, and production work.

Key Features

128 resistor values (E24-style distribution using 1% resistors)

100pcs/value → 12,800 pcs total

High-precision: ±1% tolerance

Temperature coefficient:

1Ω–10Ω: ±200 ppm/°C

10Ω–10MΩ: ±100 ppm/°C

10MΩ–22MΩ: ±200 ppm/°C

Maximum working voltage: 50V

Maximum overload voltage: 100V

Operating temperature: −55°C to +155°C

Highly durable 128-bin organizer with clear labels

Perfect for rapid prototyping and SMD circuit repairs

Resistor Package Size

0402 (1.0 × 0.5 mm)

Applications

Electronics prototyping and development

Repair, rework, and SMD component replacement

Engineering labs, education, and research use

Makers and hardware startups

Production line support and R&D stock kits

What’s Included

1 × 128-bin Super Enclosure™

128 labeled resistor values

100 pcs per value

all resistors sorted and ready to use

Mechanical Dimensions

Length: 209 mm

Width: 200 mm

Height: 29 mm

Why This Kit?

This kit provides a complete and well-organized 0402 resistor library that dramatically improves workflow in labs and engineering environments. With 100 pieces per value, it is ideal for heavy prototyping and frequent SMD assembly work.
