Very clear OLED module comes with arduino based tutorialsSold By Smart-Prototyping, Ships from China
Specification: High resolution 128x64, this OLED screen have more pixels per unit area than other 12864screen. Wider view angle, wider than 160 degree, this is the best in screen Lower power consum...Read More…
High resolution 128x64, this OLED screen have more pixels per unit area than other 12864screen. Wider view angle, wider than 160 degree, this is the best in screen Lower power consumption, 0.06W when workingg nomally. Power supply AC3V-5V, working very well with Arduino. Working temperature -30 degree to 70 degree small size, L27.8xW27.3xH4.3mm Support 4 line SPI, IIC With CS signal, support multiple SPI or IIC device working on one BUS Compatible 3.3v and 5.0v chip I/O level Dirver IC SSD1306

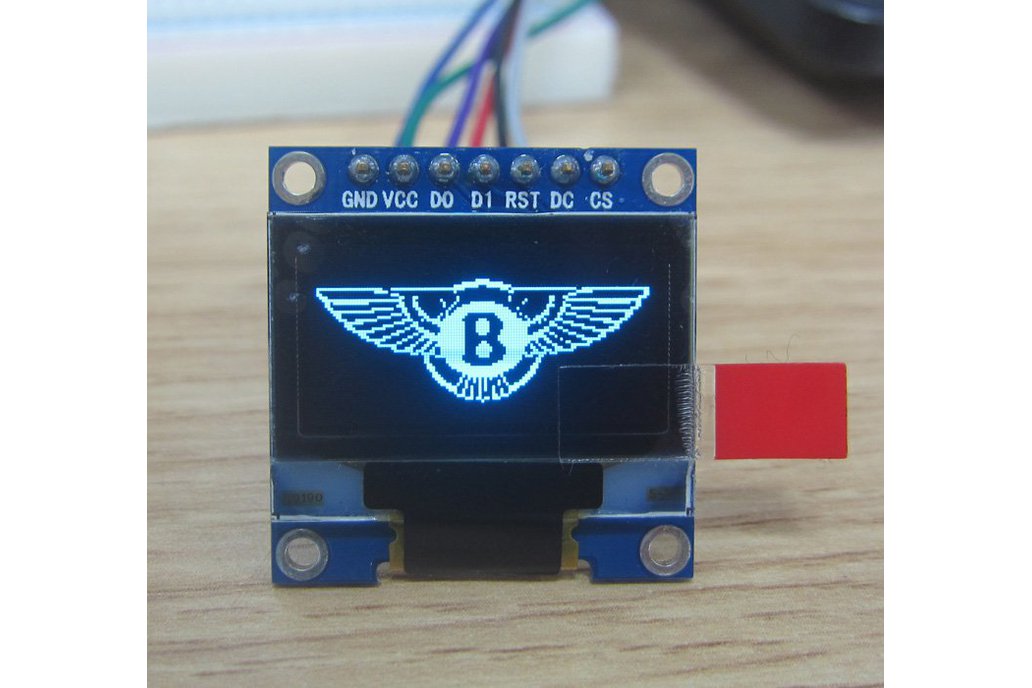

GND: power ground VCC: 3.3v or 5.0V power supply D0: ClK D1: MOSI data RST: Reset DC: Data/Command CS: Chip select Port
You can use this screen on
Smart watch Smart Car camera monitor realtime display Battery capacity management. MP3 Function Cellphone Portable health device Any project possible
