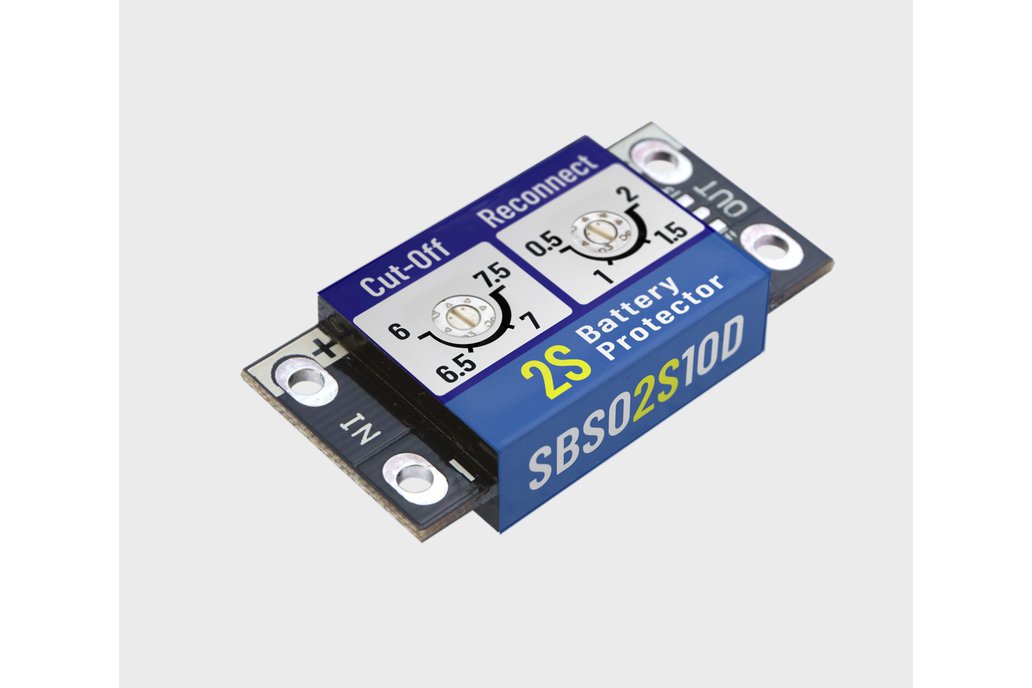

Li-Ion BATTERY PROTECTOR 10A

Name: Li-Ion BATTERY PROTECTOR 10A
SKU: 14867
Price: 36.00 USD
Availability: InStock

Protects batteries from over discharge. Plus short circuit and overload protection.

Designed by sbs.solutions in Latvia







Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Protects batteries from over discharge. Plus short circuit and overload protection.

Low voltage cut-off module for Li-Ion (LiPO) batteries. Adjustable threshold levels for cut-off and reconnect. Remote pins for manual override. Can be used as DC SSR relay. Protects batteries from ov…

Low voltage cut-off module for Li-Ion (LiPO) batteries.

Adjustable threshold levels for cut-off and reconnect.

Remote pins for manual override.

Can be used as DC SSR relay.

Protects batteries from over discharge and/or short circuit and overload.

Specifications:

Input voltage range: 6..38V
Continuous current: max 10A
Self consumption OFF/ON: 0.08mA/1.5mA
Dimensions: 20 x 42 x 9 mm (0.79 x 1.65 x 0.35 inch)
Wide 2 mm in diameter soldering terminals - you can solder any type of connector you wish.

Main Features:

Adjustable threshold levels for Cut-Off and Reconnect.
Auto ON on power cycle - no need to reach reconnect value to get ON after power apply.
Remote ON/OFF pins to override switch state.
Solid state switch (single n-ch MOSFET on the positive side)
Solid, epoxy sealed PCB.
