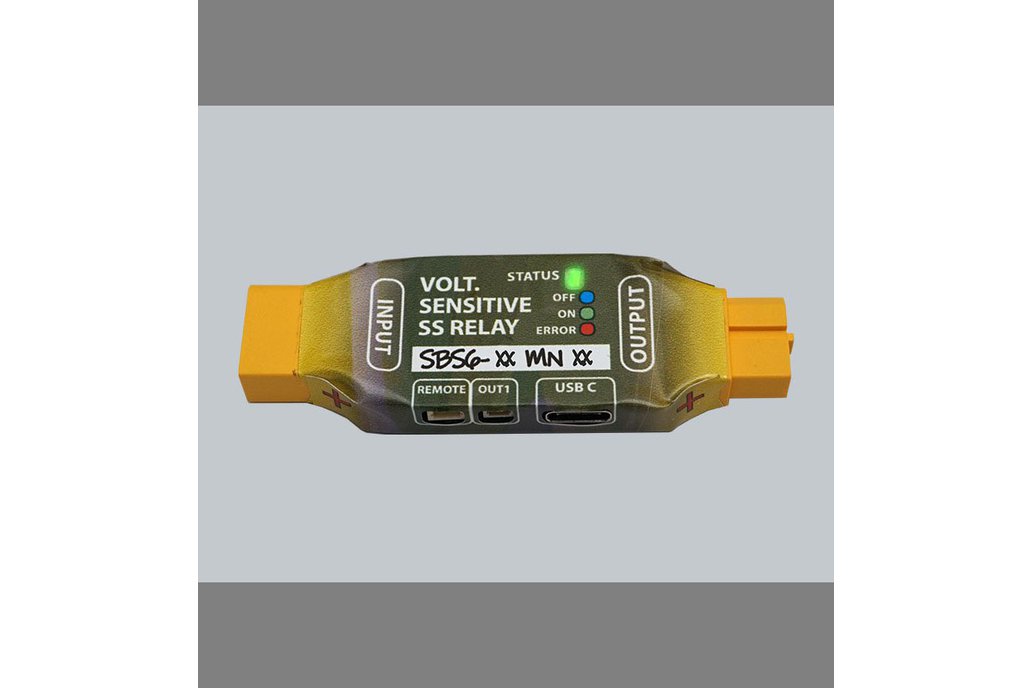

Battery Protector MN 6-36V 20A

Name: Battery Protector MN 6-36V 20A
SKU: 27770
Price: 59.00 USD
Availability: InStock

Protects batteries from over discharge/charge. Suitable for high capacitive loads.

Designed by sbs.solutions in Latvia











Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Protects batteries from over discharge/charge. Suitable for high capacitive loads.

Main features: Low/High voltage cut-off (on positive side). Easy setup wizard through USB connection. Remote pins for manual on/off override. One open drain output - independently configurable for al…

Main features:

Low/High voltage cut-off (on positive side).

Easy setup wizard through USB connection.

Remote pins for manual on/off override.

One open drain output - independently configurable for alarm buzzer or to drive an external relay.

Safe for reverse current flow at full rated current.

Supported batteries:

Lead Acid 12 - 24 V

Li-Ion 2S-8S (7.2 - 28.8 V)

Li-Po 2S-8S (7.4 - 29.6 V)

Li-FePo4 2S-10S (6.4 - 32 V)

or any other battery with maximum voltage lower than devices max voltage - 36V

Specifications:

Input voltage range: 6..36V
Max continuous forward (reverse) current: 20A (20A)
Self consumption OFF/ON: 0.4mA/1.4mA
Power terminals: XT60 or none
Dimensions: 25 x 8 x 75mm (0.98 x 0.31 x 3 inch)
Weight: 18g

Safety:

True short circuit protection: YES
Over-current protection: YES
Thermal protection: YES

Note - safety features does not work in reverse current flow.

What's included:

The module itself, two connectors (JST SH 1.0) with 10cm wire for remote (3p) and IO (2p) port.

Links:

LVD Setup: https://youtu.be/m4THFyS1XD4

Manager software (for Windows 7 or 10) can be downloaded here: https://bed-electronics.com/software/

Comparison table between models here: https://doc.bed-electronics.com/docs/SBS-LVDComparison.pdf
