Easy Access to Ground; Big Component Pads; User Friendly Interface; Your Name On it!!Designed by SpeedyLab, Ships from United States of America
This seller is on vacation. Please return after April 30, 2022 to purchase this awesome product!
When placing the order, please write down in the notes to seller what texts you'd like to appear on the name card: Line 1: Line 2: Line 3: Line 4: You can also specify fonts and text size. You ca...Read More…
When placing the order, please write down in the notes to seller what texts you'd like to appear on the name card:
You can also specify fonts and text size.
You can also put your logo onto your board if you want. You'll need to send me a high resolution image of your logo (firstname.lastname@example.org)
You can specify the color of your board: choose from Green, Black, Blue, Yellow, and Red

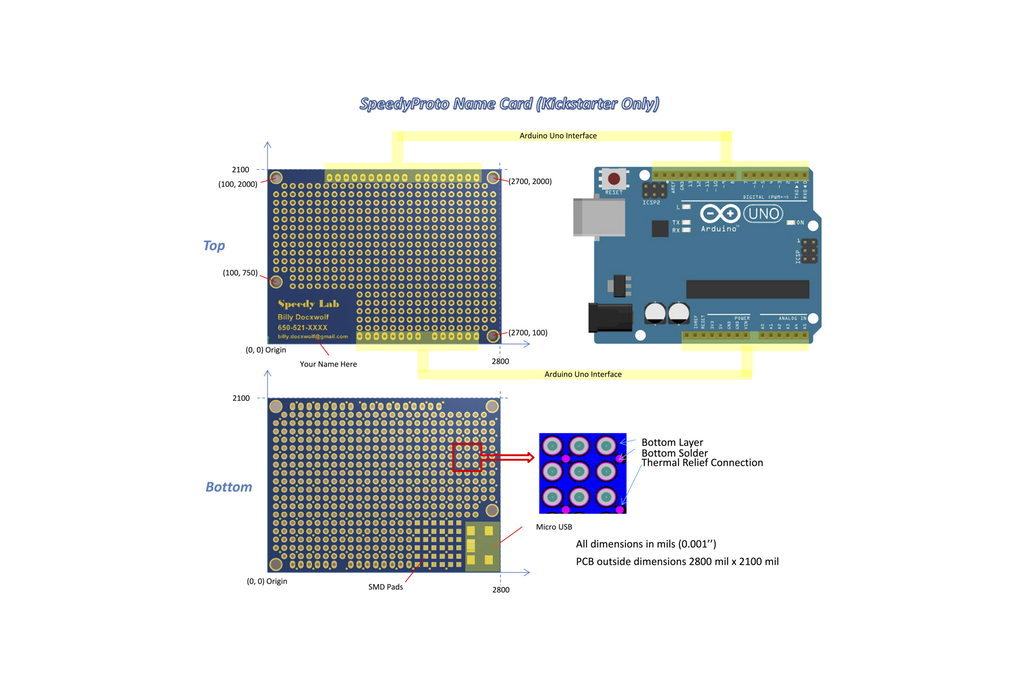

This is a 2100 mil x 2800 mil double layer prototype PCB board. It has a large ground plane. Each component pad has easy access to ground. Your name and other texts will be displayed on the board.
For datasheet in pdf, click here.
This product was launched by a Kickstarter project. For more details and product video, click the link.
When laying out PCB boards, you usually insert ground plane or connect copper pour to ground. This improves noise immunity and system performance.
You know the importance of grounding very well. A lot of application notes also talk about this. Even in prototypes, people care about grounding all the time.However, when building circuits on bread board or PCB protoboard, you usually don't get a ground plane or a big piece of copper as ground. Instead, you fly wires everywhere.
Many components need to be connected to ground, but you never get a ground on bread board or conventional PCB protoboard.
SpeedyProto gives you a ground, with thermal relief ground connection dots accessible from every pad.
|Shipping Rate||First item||Additional items|
United States Postal Service: USPS First Class (3-5 Days)
United States Postal Service: Priority Mail (1-3 days)
$149.00 $ $149.00
$9.90 $ $9.90
$30.00 $ $30.00
$139.00 $ $139.00
$99.90 $ $99.90
