70W Soldering iron controller for in series thermocoupled tipsDesigned by SMDprutser, Ships from Netherlands
A small (5x5cm) but powerfull soldering iron controller. It is capable of driving in series thermocouple heaters like Hakko T12 and T15 digitaly. Since it will deliver upto 70W it can solder almost...Read More…

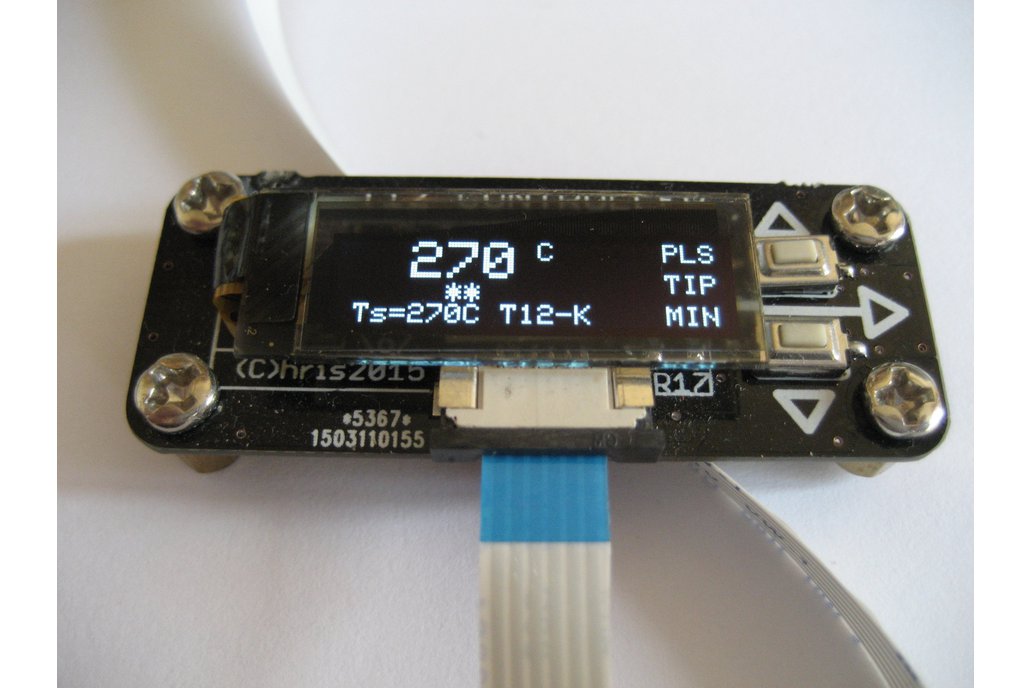

A small (5x5cm) but powerfull soldering iron controller. It is capable of driving in series thermocouple heaters like Hakko T12 and T15 digitaly. Since it will deliver upto 70W it can solder almost everything. It comes with a small userinterface baord which contains a small, bright OLED display to show all relevant information and two buttons to control it. This board is separate from the soldering iron driver board to allow flexible placement or it can be easily builtin into a (existing) housing. Boards are coupled with a flatflex cable (included). Key features are:
The controller can store upto 31 different calibrationdata of each tip you own. Calibration of a tip is done by letting it cool down to room temperature and heating it up to 183 degrees Celsius (melting point of normal leaded (60/40) solder).
Optional the controller is programmable through a serial link (using a 3v3 serial to USB convertor) (not implemented in the current firmware). Firmware is also upgradable by using this serial link.
Not included in the package is a 24Vdc, 3A capable powersupply. The controller accepts anything between 12V and 24V. A working soldering iron may be required for assembly.
