This is an board designed to use with ATmega DIP40 microcontrollers. Despite the fact that it is small and has a minimal design it’s very versatile project.
A few years ago, I had worked on several projects with ATMEGA microcontrollers. Although I had some development boards, they were not enough, and I did not want to disassemble / reassemble the projects every time I switch the project. So, I designed this board to have the various projects ready-to-use until finishing the code.

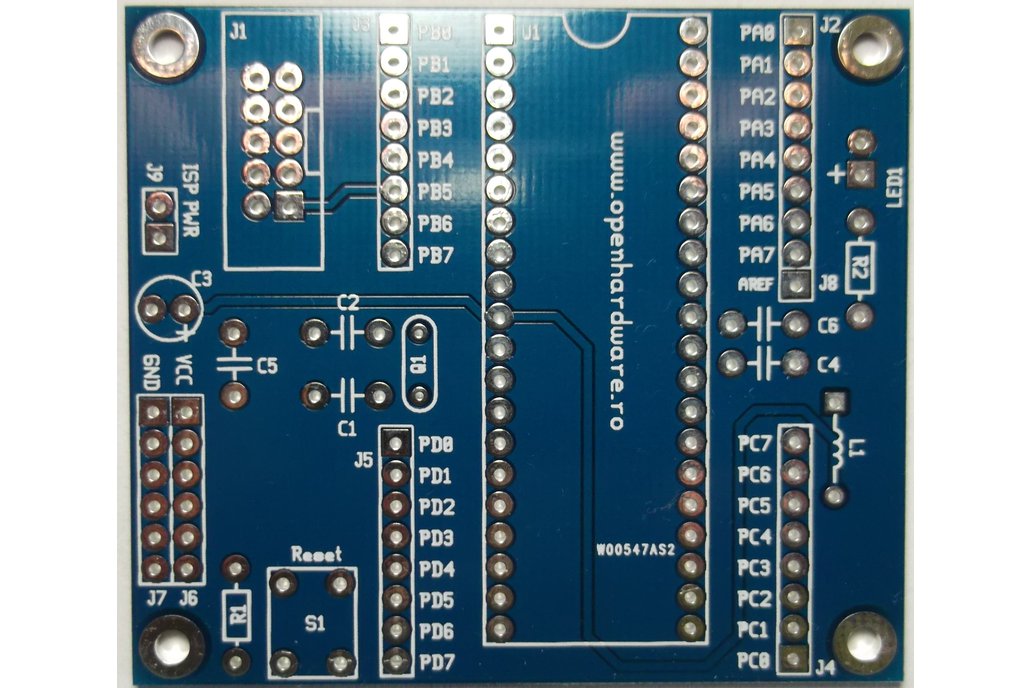

Easy prototype and experimenting with ATMEGA microcontrollers in DIP 40 package. Can be used with Arduino IDE or AVR Studio. All components are thru-hole. Include filtering of AVCC for better analog input. It's an open source project. All design files are available: PCB and schematic (The gEDA suite and Linux was used for design).
